SPECIFICATIONS
App: Camhipro
Application: Outdoor,indoor
Audio: Support 2-Way Audio
Brand Name: ASZHONGA
Customized support: Online Technical Support,Customized Logo,OEM, ODM
Data Storage Options: Micro SD card,Cloud,Full HD,NVR
Function: Waterproof / Weatherproof,Wide Angle,Built-In Siren,Two-Way Audio,Vandal-Proof,Pan-Tilt,Night Vision,Reset,Built-In Mic,Full color night vision,2.4GHz WIFI
Lens: 4mm+6mm,DUAL LENS
Megapixels: 4MP( Dual-2MP )
Model Number: P25-F2W-4MP2CAM
Place of Origin: Guangdong, China
Sensor: CMOS

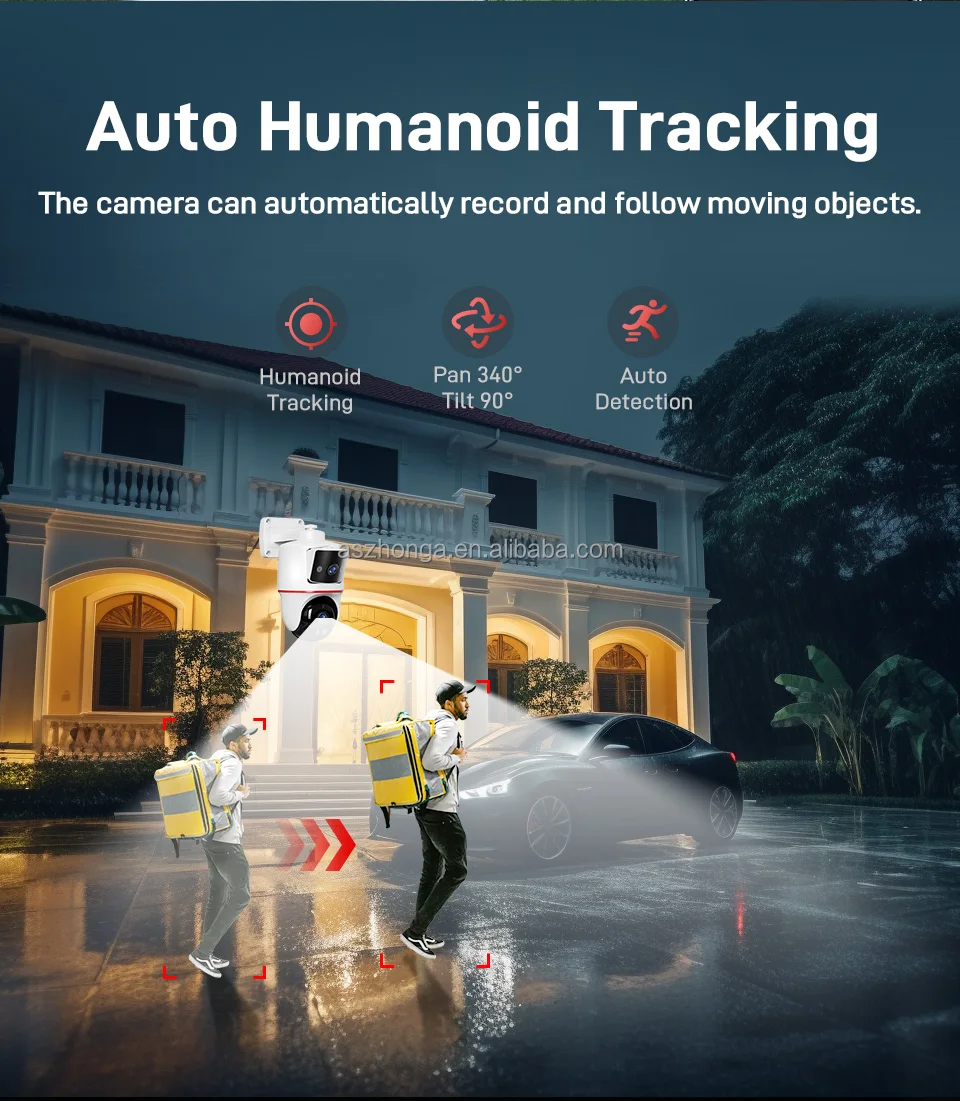

Special Features: Built-In Siren,Night Vision,Two-Way Audio,Pan-Tilt,Sound Detection,Waterproof / Weatherproof,Motion Detection,Motion Tracking
Special Features 1: Motion Detection
Special Features 2: Multi-Lens
Style: PTZ Camera
Video Compression Format: H.265
Video storage: Max 256GB(TF/SD card not included)
Viewing Angle: Horizon: 0-355°/Vertical: 0-90°
Warranty: 1 Year
Waterproof: IP66

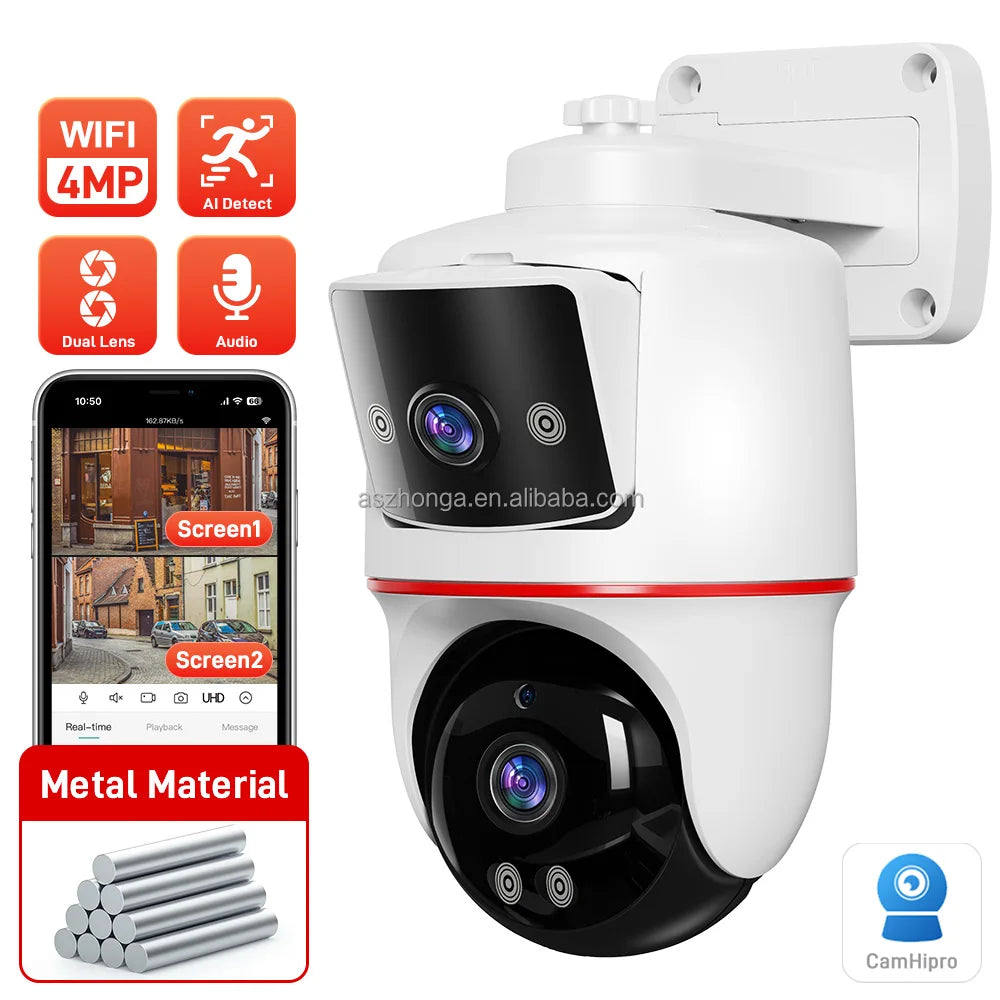

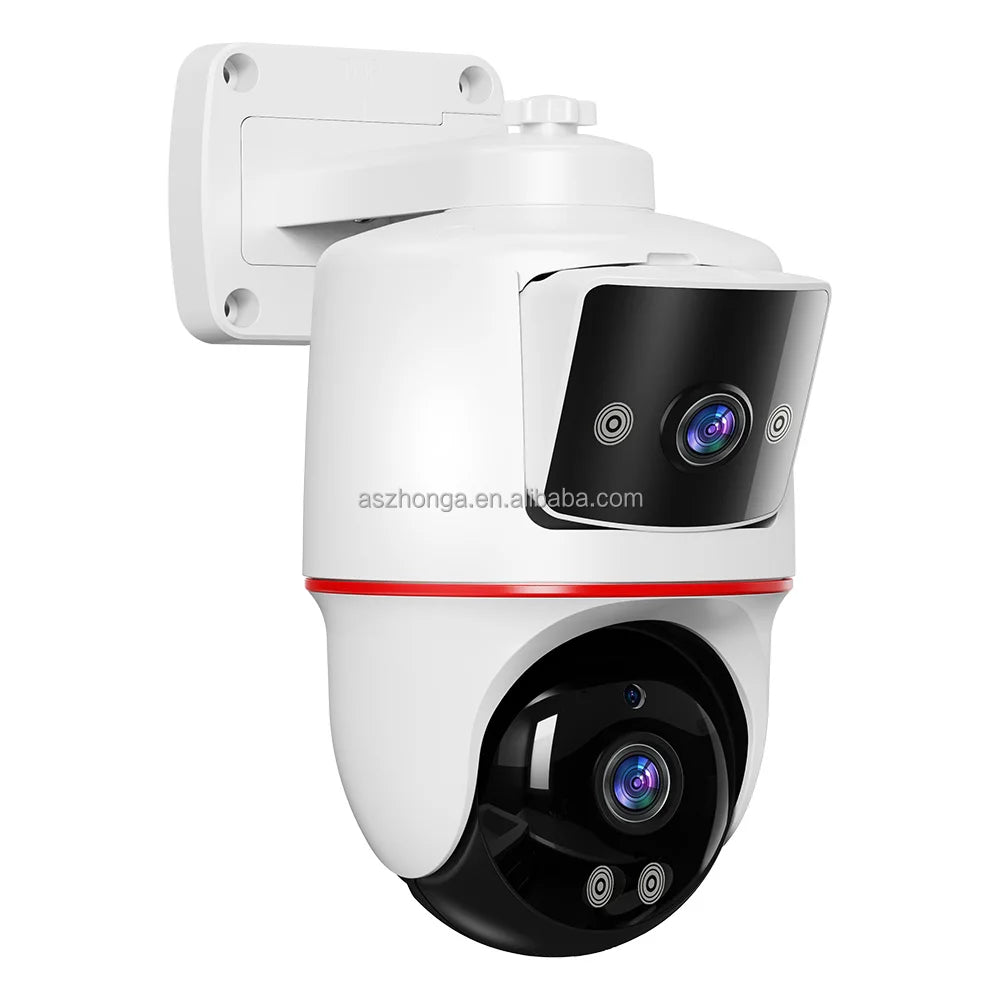

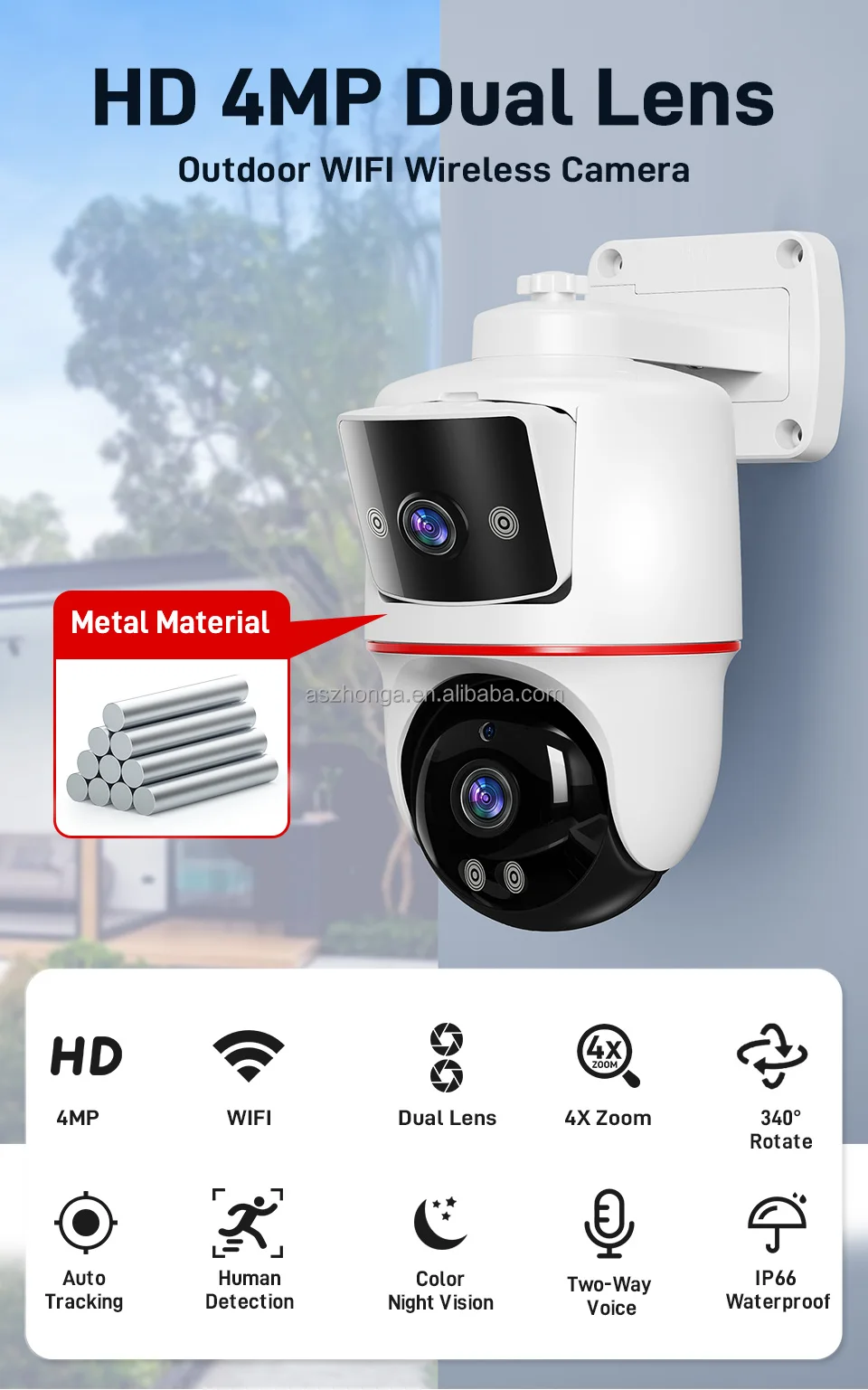

Multi-lens camera bullet and PTZ 2-in-1 home Security IP network CCTV 4MP wireless WiFi camera outdoor waterproof 2-way audio

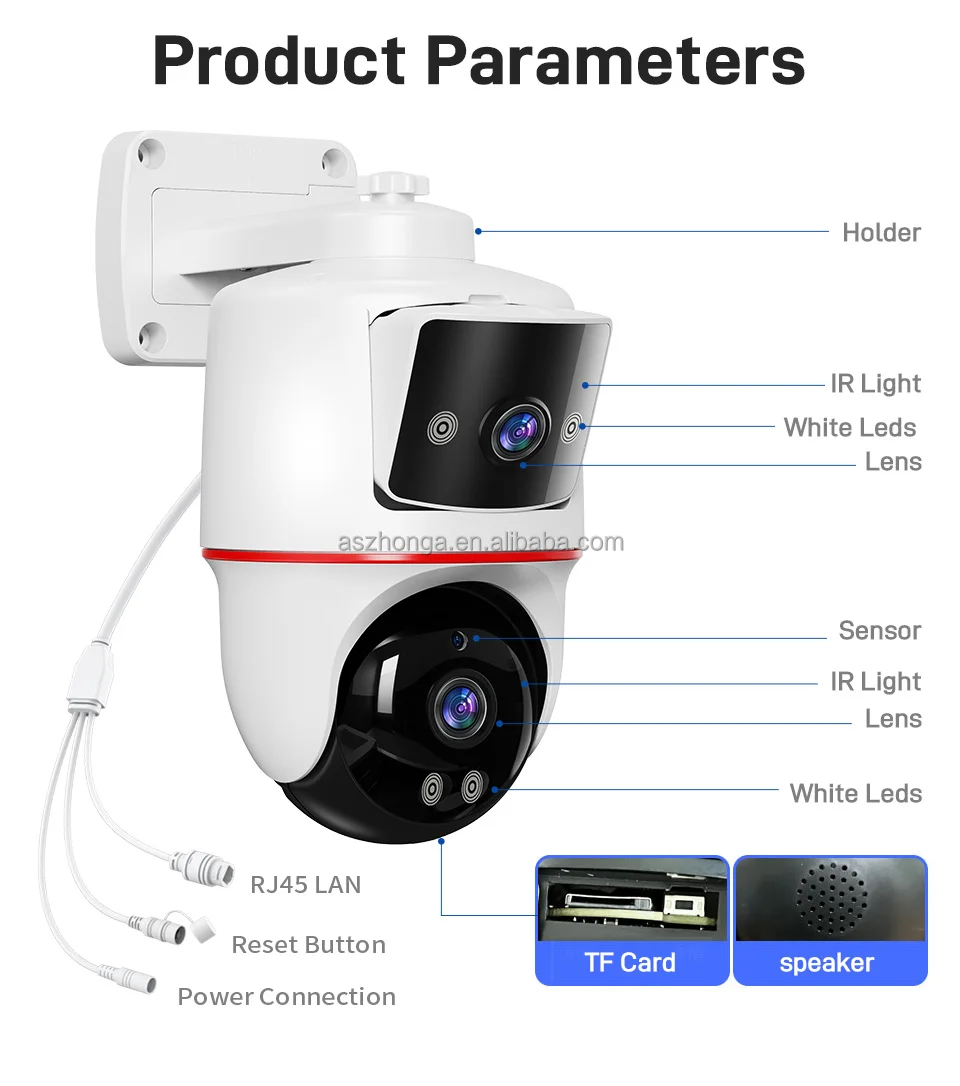

Features :
4mm+6mm Lens
Support 2.4GHz WIFI ( 802.11b/g/n)
4G-EU support BAND: GSM 900/1800 MHz ; 4G FDD-LTE Band 1/3/77/8/20 ; 4G TDD-LTE Band 38/40/41 ; 3G WCDMA Band 1/8 ;(WIFI ver.not support this option)
Support HD 4MP (Dul-1920*1080) 2K High quality resolution
6pcs Array Infrared LEDs+2pcs White LEDs(Fixed Position Camera)
6pcs Array Infrared LEDs +2pcs White LEDs，Support full color night vision(PTZ CAMERA)
Built-in Microphone , Speaker,Support Two Way Audio Talk Back
Microphone Effective Range 10 Meters
Loudspeaker Effective Range 20 Meters
Support TF card, up to 256G(Don't included TF Card)
Pan tilt rotation, horizontal:355° & vertical:90°Ø
Support P2P, view & anywhere & anytime
Elegant outline and easy installation
Provide android & ios APP (Camhipro)
Outdoor Use,Waterproof IP66

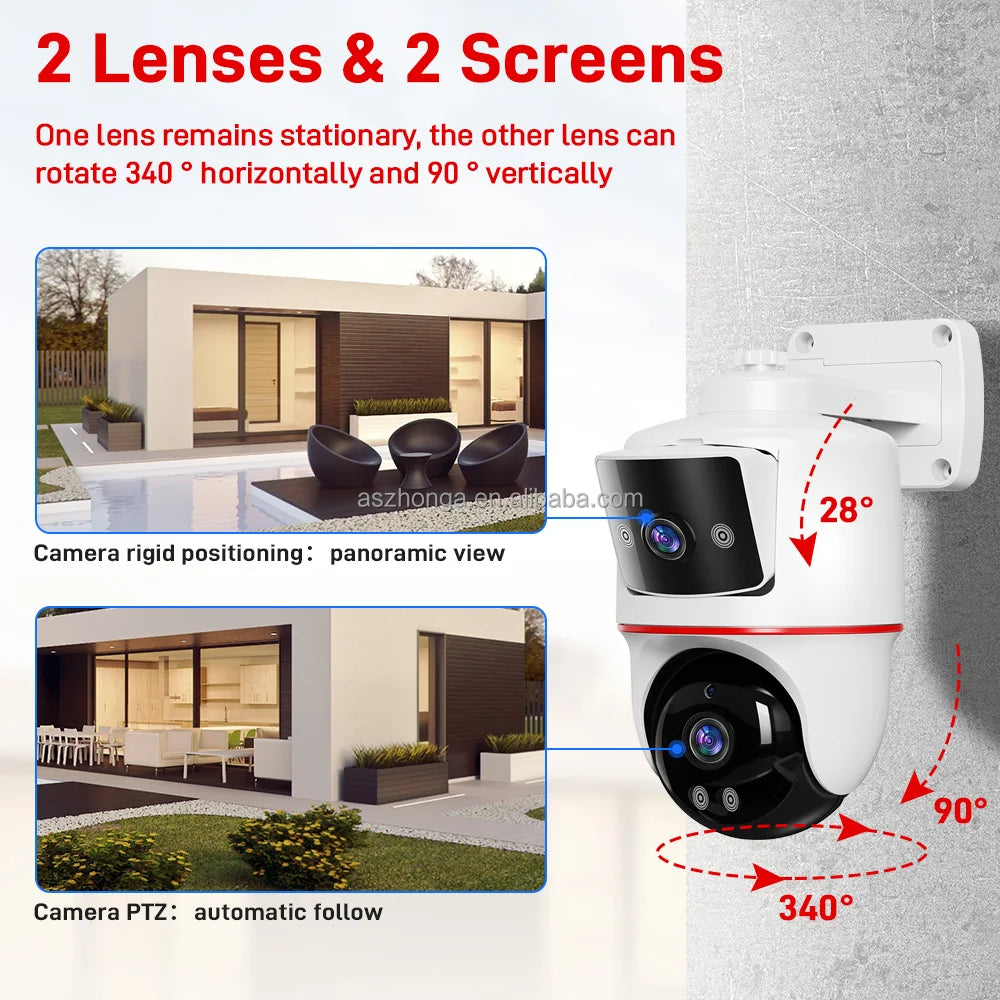

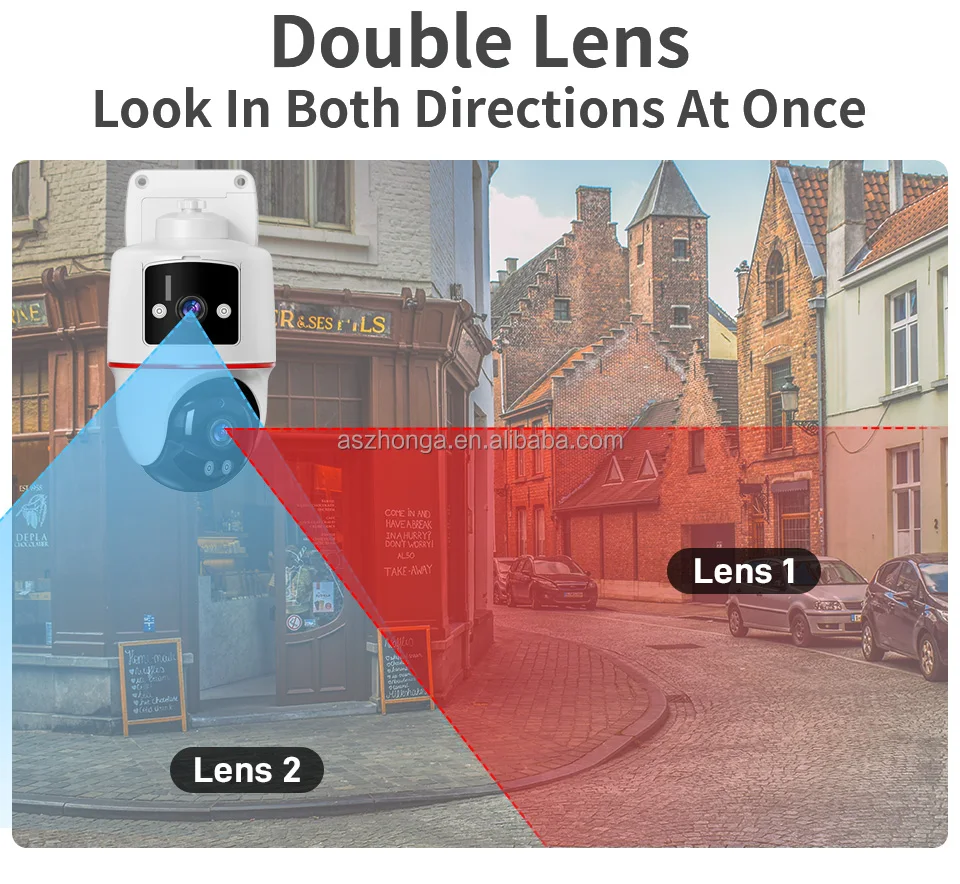

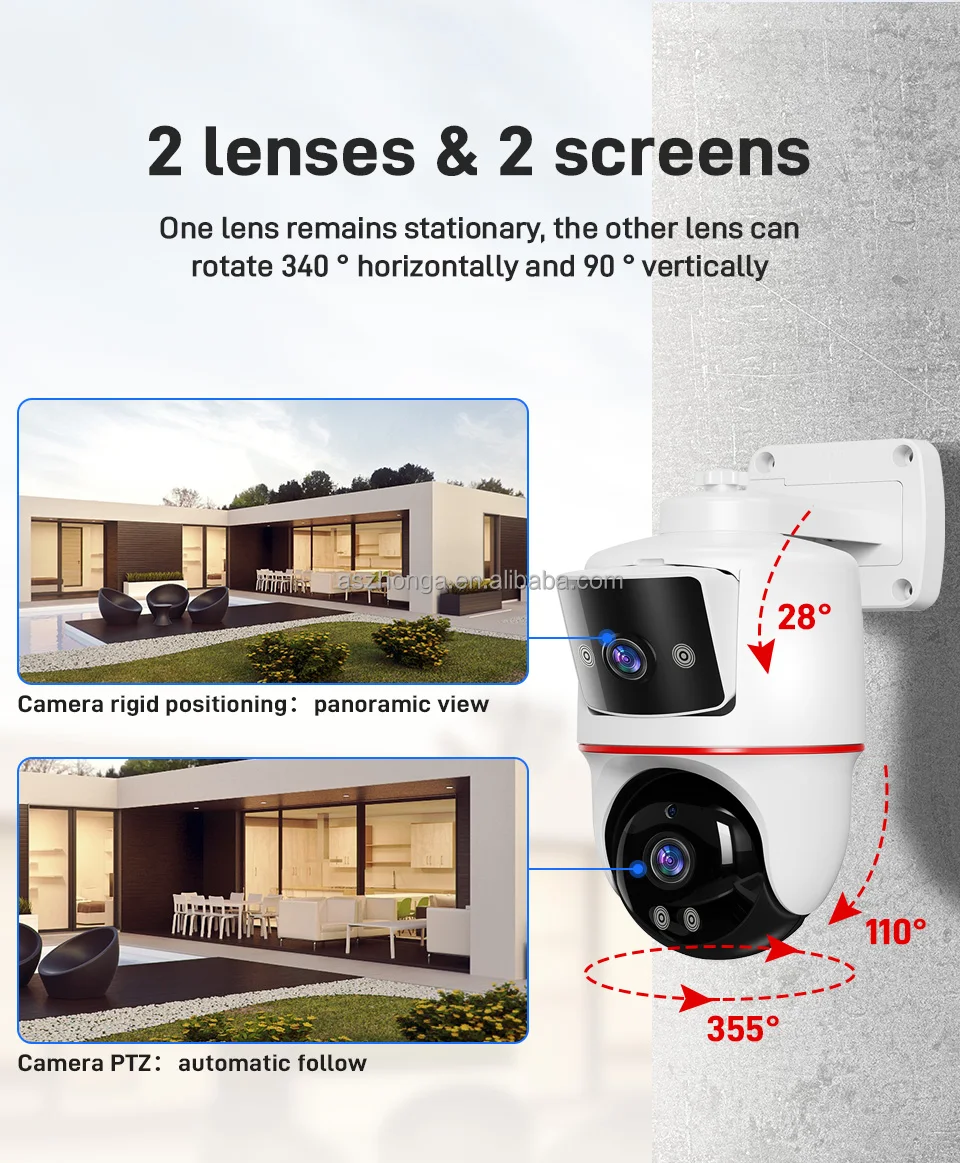

Multi-Lens * Dual Screen

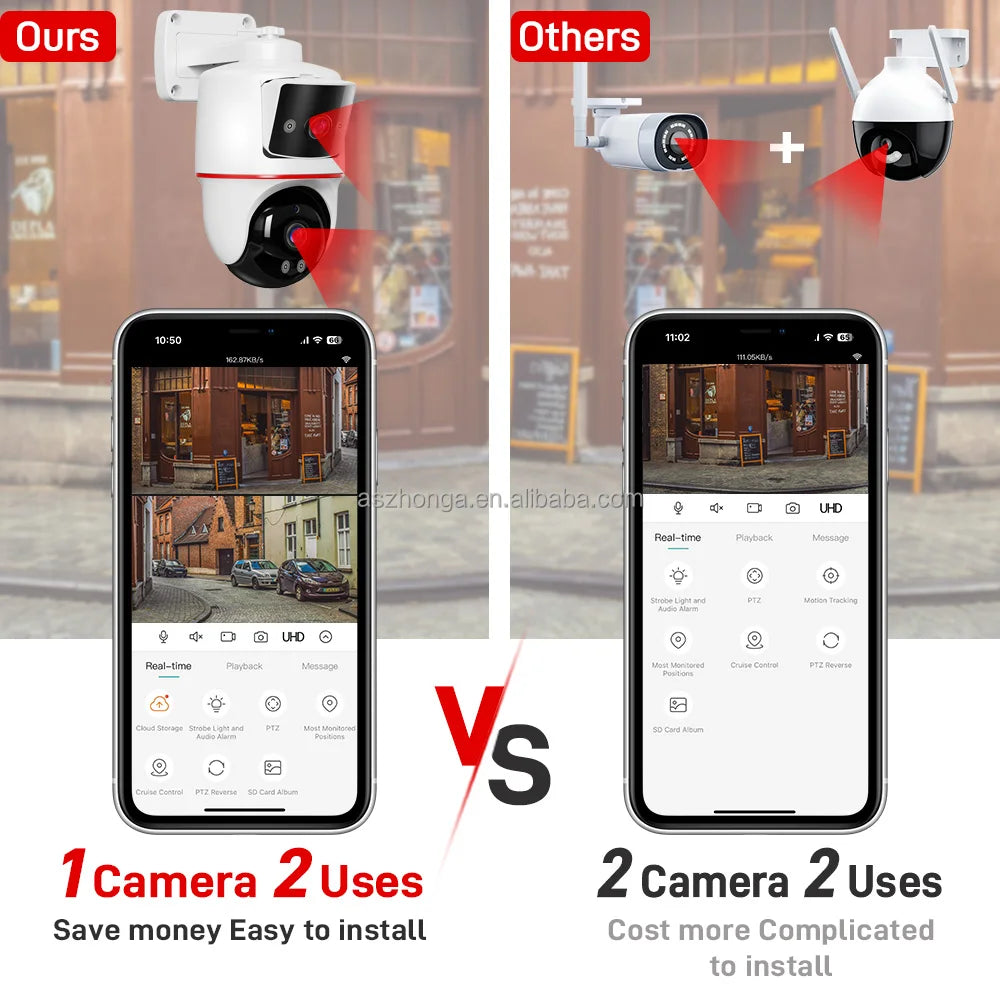

There are 2 video screens in APP, the upper one is PTZ camera and the lower one is camera fixed position camera. You can click the position you want to enlarge in the video of the fixed camera, and the 6mm lens PTZ camera will move to the specified position.

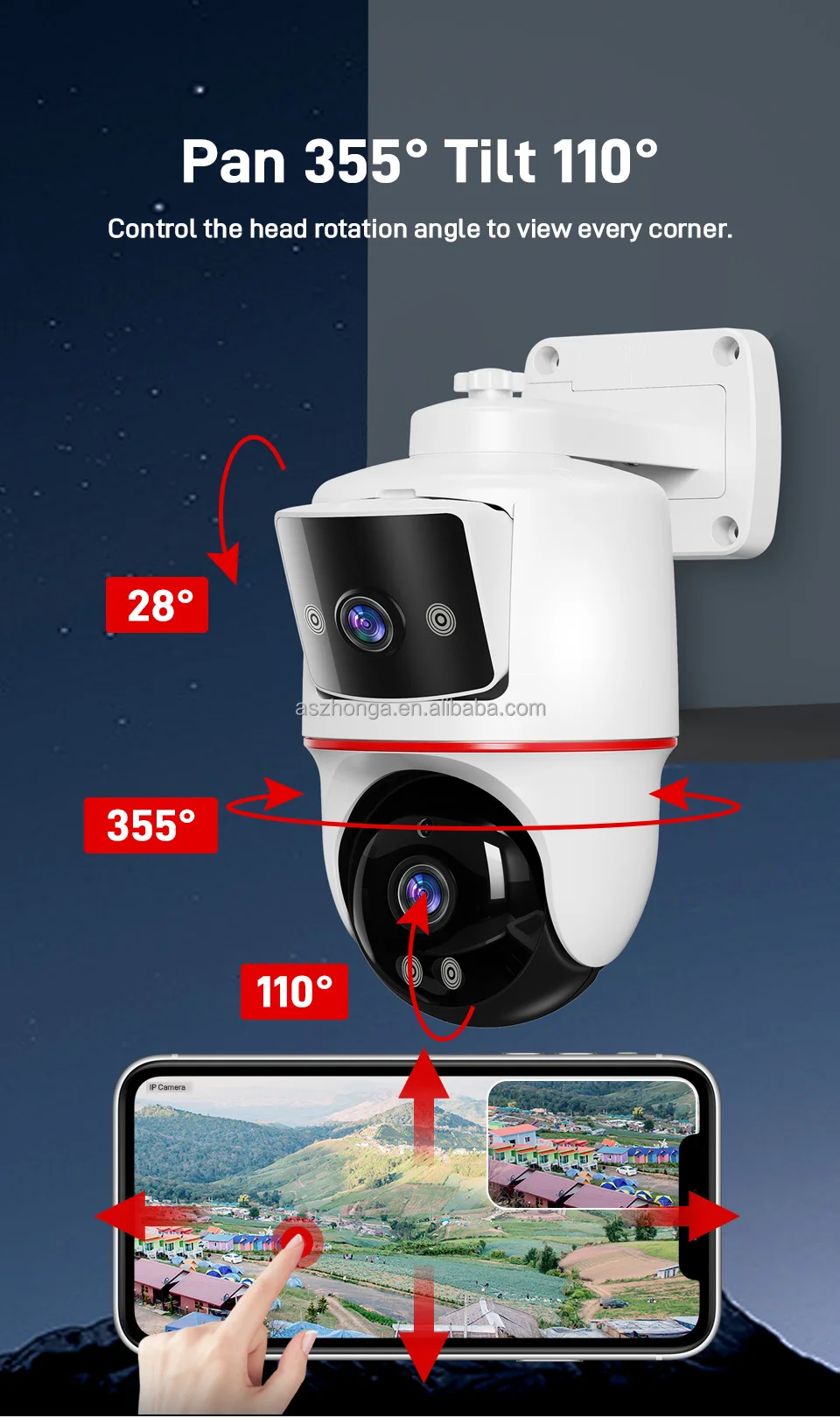

Pan Tilt Rotation
Horizontal: 355 Degree & Vertical: 90 Degree
Day And Night Color Vision
The camera has starlight night vision function, clear image at night, with 8Pcs infrared radiation light for 24 hours vigilance, the camera night vision range in the dark up to 35M, in the prevention of security threats have a very good guarantee.PTZ camera with 4 infrared radiation lamp and 6 white LED can achieve up to 20 meters distance color night vision function.

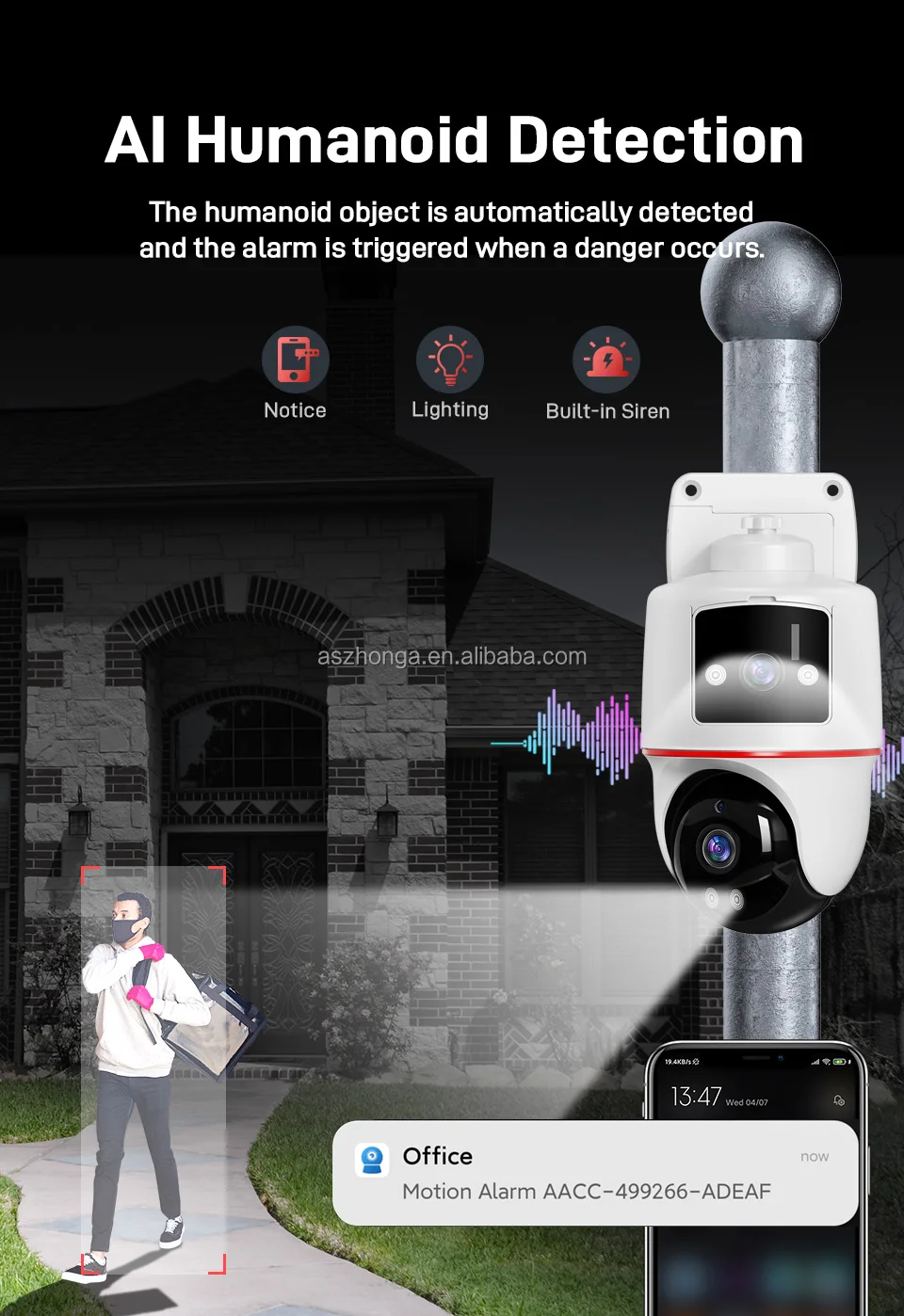

Get Real-Time Alerts That Matter
Automatically detect moving objects and trigger alerts when dangers occur. Protect your home and business effectively from burglars, intruders and break-ins. When invasion happens without your permission, this camera will send alerts in real time.
Two-way Audio
Equipped with microphone and speaker, at any time you can remotely view or talk to your pet, dog, family, employee,etc

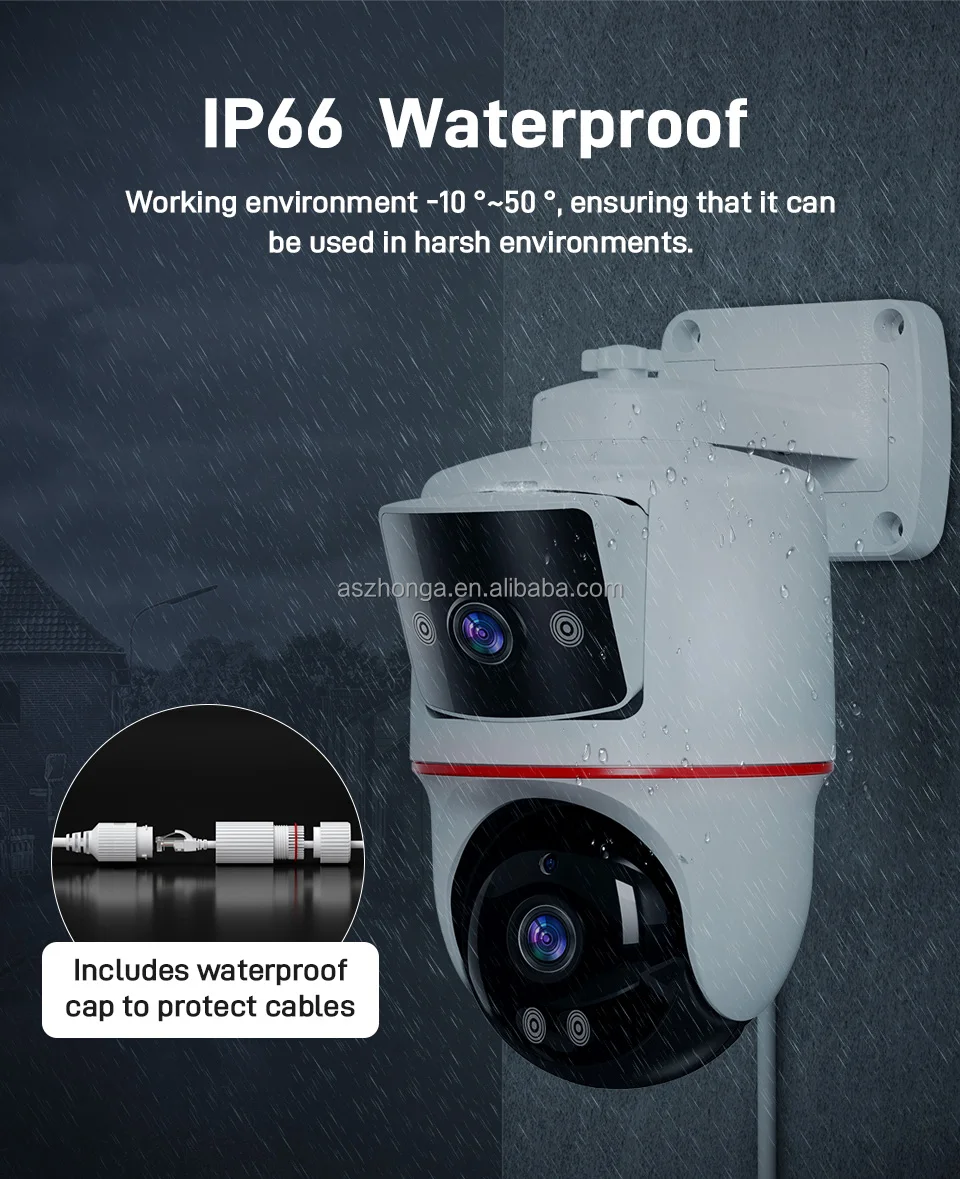

IP66 Outdoor Waterproof
This outdoor security camera with waterproof body and power adapter, work temperature minus -20 degrees Celsius to 60 degrees Celsius, work well on the heavy rains or snows days.

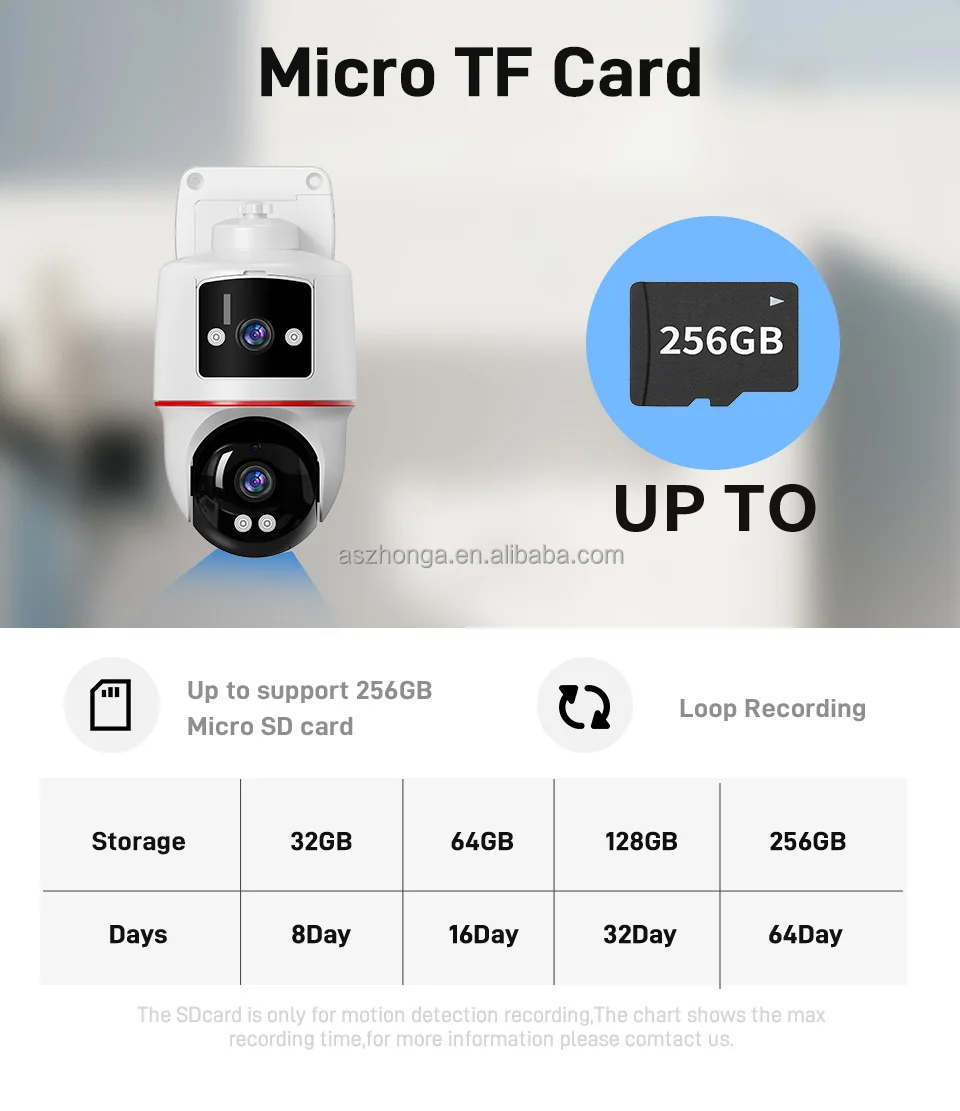

TF Card Storage
UP TO SUPPORT 256GB TFCard

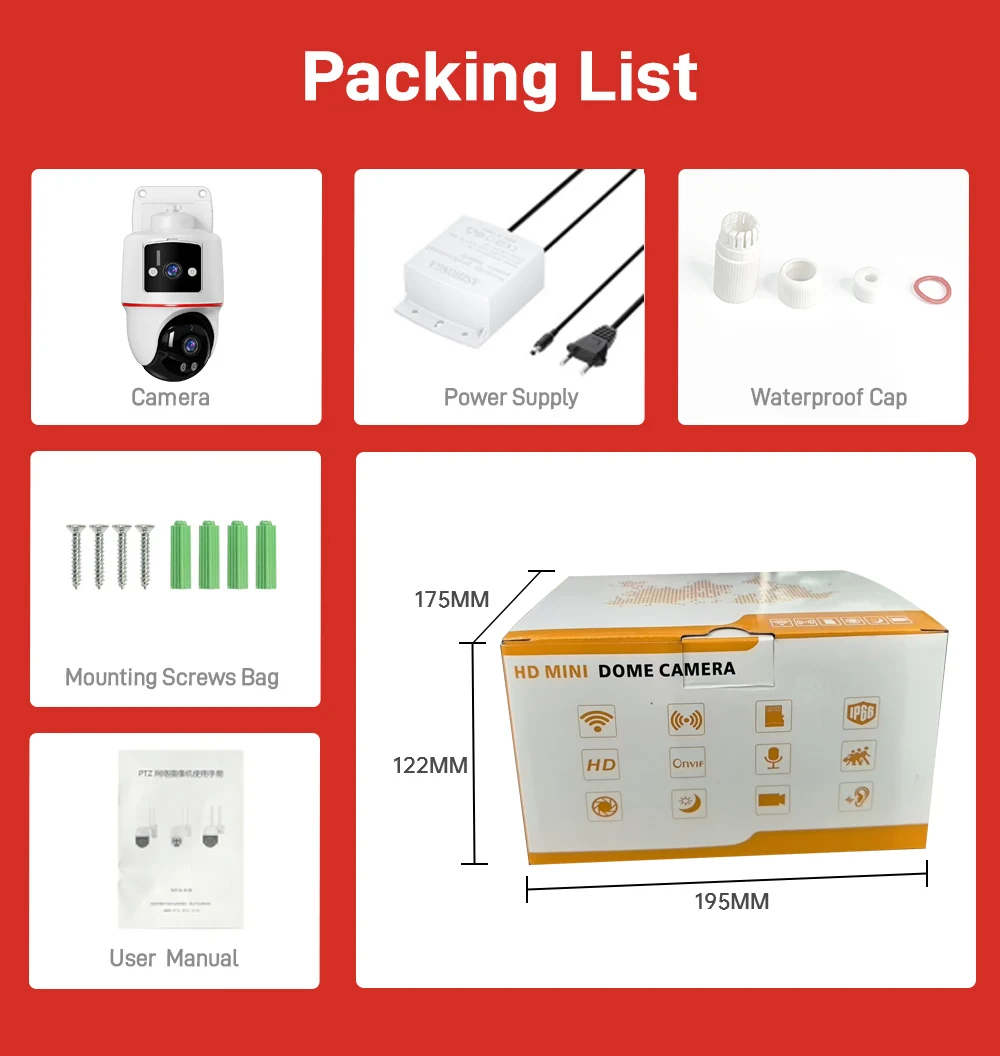

Packing List:
1*Dome Speed IP Camera (TF Card Optional Choose)
1*DC 12V 2A Power Supply
Model |
P25-F2W-4MP2CAM |
|
P25-F2W-4MP2CAM4GEU |
|
Camera Effective pixels |
Dul-2MP |
|
Dul-2MP |
|
CMOS Sensor |
1/3" |
|
1/3" |
|
Lens |
4mm Lens + 6mm |
|
|
|
View angle |
100° |
|
|
|
Min.illumination |
0.05 Lux / 0 Lux(IR on) |
|
|
|
Day&Night mode |
Auto IR-CUT |
|
|
|
Night vision distance |
6pcs Array Infrared LEDs +2pcs White LEDs (Fixed Position Camera) 6pcs Array Infrared LEDs +2pcs White LEDs，Support full color night vision(PTZ CAMERA)
|
|
|
|
Video compression Standard |
H.265/H.264 Main Profile/H.264 Baseline |
|
|
|
Video streaming |
Triple streaming |
|
|
|
Video resolution |
First stream: DUL-1920x1080 Main Stream |
|
|
|
|
Second stream:VGA |
|
|
|
|
Triple stream :QVGA |
|
|
|
Image settings |
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror |
|
|
|
Image enhancement |
Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction |
|
|
|
Audio function |
Built in Audio Microphone, Support Two Way Audio Talk Back |
|
|
|
Motion detecting |
Can set 4 independent detection region (1-100 sensitivity can be set) |
|
|
|
Alarm linkage |
Alarm send pictures to the specified mailbox, |
|
|
|
|
alarm upload pictures and videos to the FTP server, |
|
|
|
|
alarm write pictures and videos to Micro TF card, alarm message push |
|
|
|
OSD |
Support camera name, date and time information superimposed |
|
|
|
User management |
Supports user and rights management |
|
|
|
Simultaneous viewers |
maximum support 3 users to simultaneously browse (each stream supports 3 users) |
|
|
|
Network protocol |
TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP, |
|
|
|
|
FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP（Customization required） etc. |
|
|
|
Connection protocol |
ONVIF-Compatible 2.1Version (backward compatible) |
|
|
|
Network Support |
2.4 GHz to 2.4835 GHz / IEEE802.11b/g/n Draft |
|
|
|
Wireless Security |
64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS |
|
|
|
Transmission rate |
11b: 11Mbps,11g :54Mbps,11n :135Mbps |
|
|
|
Rotation angle |
Horizon: 355°. Vertical: 0° to 90° |
|
|
|
Horizontal speed |
1° to 30°/S |
|
|
|
Vertical speed |
1° to 15°/S |
|
|
|
Cruise Zoom |
Not Support |
|
|
|
Power interface |
1* DC φ2.1*5.5mm power interface |
|
|
|
Ethernet |
1 * RJ45 & Antenna 10M/100M Adaptive Ethernet Interface |
|
|
|
TF card Slot |
1 * TF card slot. up to 256GB (NOT included TF Card) |
|
|
|
Reset button |
Support |
|
|
|
Power supply |
DC 12V 2A |
|
|
|
Power |
Day: 5W; Night: 14W |
|
|
|
Operating temperature |
-20 to +60 degree |
|
|
|
Operating humidity |
10% to 95% |
|
|
|
Material&Waterproof Level |
Side Housing ,Outdoor Use,Waterproof IP66 |
|
|
|
Installation |
Wall mounting |
|
|
|
Size(W×D×H)(mm) |
195(mm)×175(mm)×122(mm) |
|
|
|
Weight(kg) |
0.7kg |
|
|
|
Package Size(mm) |
205*205*130 |
|
|
|
Package Weight(kg) |
0.85kg |
|
|
|
