SPECIFICATIONS

3.5mm Headphone Port: Yes

Battery Capacity Range: 7500+ mAh

Battery Capacity(mAh): 21200

Battery Type: Not Detachable

Biometrics Technology: Side-Mounted,Fingerprint Recognition

Bluetooth Version: YES,BT5.4

Brand Name: ULEFONE

Built-in GPS: Yes

CPU Model: MTK,MTK Dimensity 7400

Card Type: Nano+Nano+microSD

Cellular: 3G,2 G,4G,5 G

Certification: CE,FCC,RoHS,weee

Charging Interface Type: Type-C

Charging Power: 120W

Design: Bar

Display Resolution: 2400×1080

Display Size: 6.67”

Fast Charging: USB-PD

Front Camera Pixel: 50MP

Front Camera Quantity: 1

High-concerned chemical: None

IP68/IP69K: Yes

Item Condition: New

Language: Arabic,Polish,German,Russian,French,Korean,Norwegian,Portuguese,Japanese,Turkish,Spanish,Italian,English

MIL-STD-810G: Yes

NFC: Yes

Night Vision Camera: 64MP

Operation System: Android

Origin: Mainland China

Other Features: EIS stabilization,Photograph Phone,5G Mobile Phone,Fast Charging Phone,Sports Phone

ROM: 512GB

Rear Camera Pixel: 50MP

Rear Camera Quantity: 3

Reverse Charge: Support, 10W

SIM Card Quantity: 2 SIM Card

Screen Material: AMOLED

Screen Refresh Rate: 120 Hz

Screen Type: Fullview Display

Touch Screen: Yes

Ultra-wide Lens: 50MP

Up to 32GB RAM: =16GB +16GB

WIFI: Yes

Wi-Fi Transmission Standard: 802.11ax,802.11ac,802.11n 2.4GHz/5 GHz,802.11n 2.4 GHz,802.11b/g,802.11a

WiFi: WiFi 6E

Wireless Charging: No

Ulefone Armor 29 Pro （T) Specifications

● 21200mAh Monster

* This product uses dual-cell series connection design:

Typical capacity: 10600mAh (7.74V), equivalent to 21200 mAh (3.87V)

Typical energy:82.04 Wh

● Up to 32GB RAM，512GB ROM

32GB RAM=16GB LPDDR5 + 16GB Dynamic RAM

● CPU：MediaTek Dimensity 7400    GPU ：Mali-G615 MC2, 1400MHz

● 64MP Night Vision Camera +50MP Main Rear Camera+50MP Ulra-wide Lens

●Android 15，NFC，IR Blaster

●5G/4G/3G/2G

*Not compatible with AT&T, Cricket, Sprint,Verizon, Boost Mobile, Koodo, Telus Wireless, Fido*Some network carriers have not been displayed because their 5G networks are not yet in mass commercial use. If you have participated in this carrier's testing program, please check with the carrier about the 5G frequencies they use, so that you can check whether Armor 29 Pro 5G supports their network.

5G: Sub6: N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79

4G: FDD-LTE: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/ 26/28A/28B/32/66/71 TDD-LTE: B34/38/39/40/41

3G: WCDMA: B1/2/4/5/6/8/19

2G: GSM: B2/3/5/8 CDMA: BC0/BC1/BC10

 Iron Man Halmet Elements Design

Power, Strength, Superhero

In the spirit of Iron Man, who pushes the boundaries of human potential, the Armor 29 Pro Thermal is crafted for those who do the same in nature. It's more than a rugged smartphone; it's a tool that empowers you to conquer the outdoors with the same confidence and style as your favorite superhero.

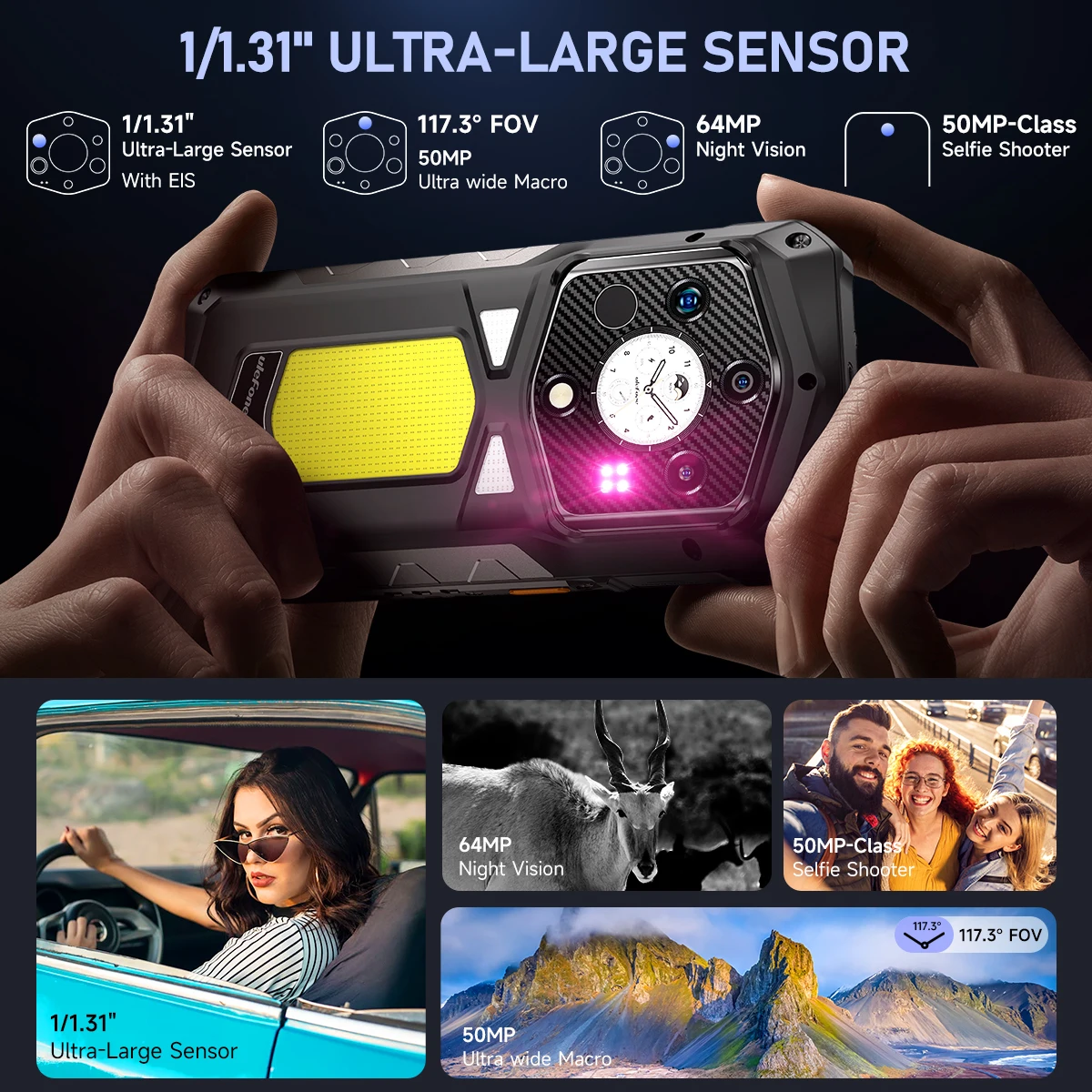

 50MP 1" Main Camera Sensor

A Sensor That Sets the Bar for Mobile Photography

 64MP Night Vision Camera

NightElf 3.0, See Further, See More Clearly

Our infrared night vision camera brightens the night, equipped with a high-resolution 64MP OMNIVISION OV64B sensor and enhanced by Ulefone's NightElf 3.0 technology. The upgrade to 4 infrared LEDs significantly improves brightness and clarity, providing superior image quality and detail even at greater distances.

Instant Capture

Dedicated Camera Key

Utilize the physical key for swift photography. With a single long press, you bypass the lock screen and jump straight into camera mode, while a quick press takes the shot without delay. Perfect for seizing those fleeting sports plays or candid pet moments, you never miss a beat.

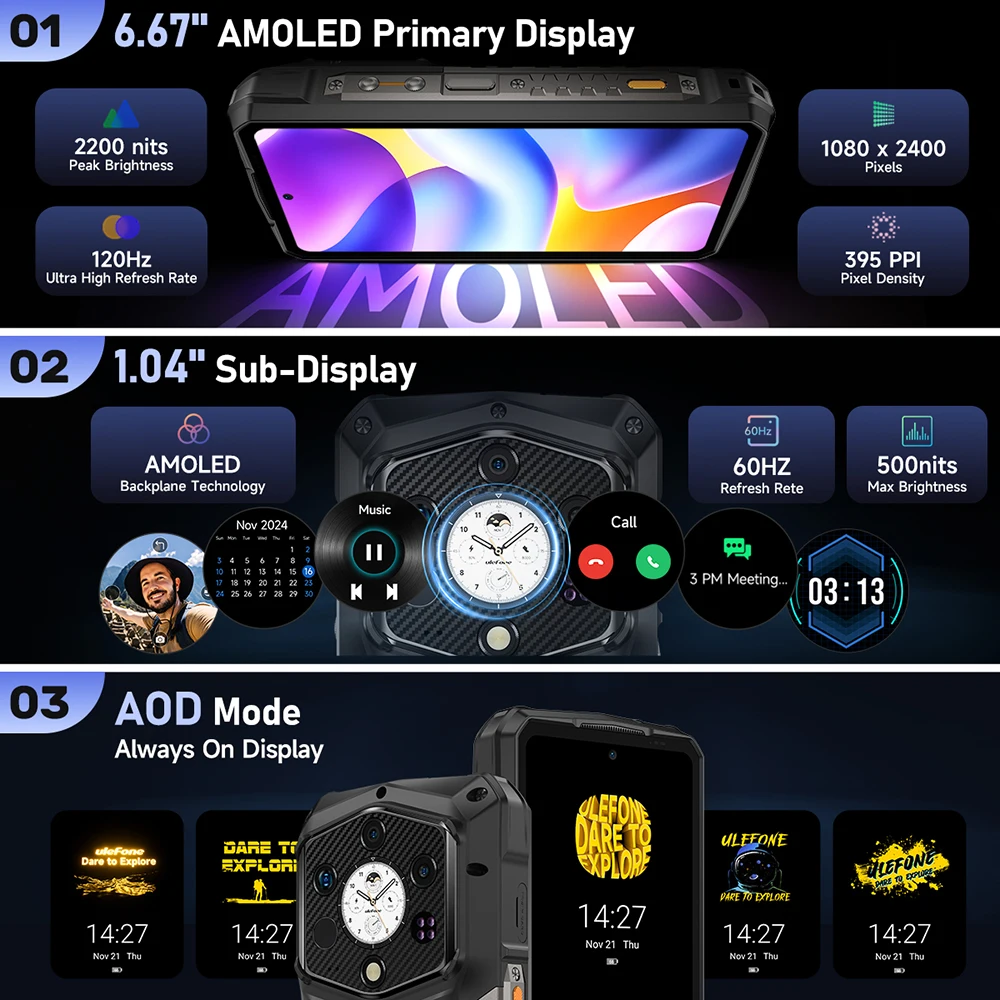

Dual AMOLED Display

Flexible, Vivid, and Fluid Like No Other

 6.67" AMOLED Primary Display

Engaging Instantly

Redefine the colors you see on a screen, the 6.67-inch flexible AMOLED display, incredibly captivates you. Boasting a higher 120Hz refresh rate, no more glitchy games or blurry videos. In ultra-bright mode, it can reach up to 900 nits, and peak at 2200 nits, making it easy to read even in the harshest sunlight.

 Luxury Watch Sub-Display

Doubling Your Vision, Doubling Your World

Experience the sophistication of the top-tier flexible AMOLED sub-screen, which enables touch interactions, keeps you updated with a persistent notification view, and serves as a hub for music control and instant selfies. And you can alter the interface, tailoring your watch's face to reflect your personal flair.

 Versatile Screen, Ultra-Handy

Crisp dynamic sub-display – swipe left or right for photos, music, calendars, and more. It's all about shortcut features, seamless interaction, and versatility in one sleek display. Incredibly user-friendly.

 AOD Mode

Both the main and sub screens feature always-on displays for quick time and notification checks, and support custom lock screen wallpapers.

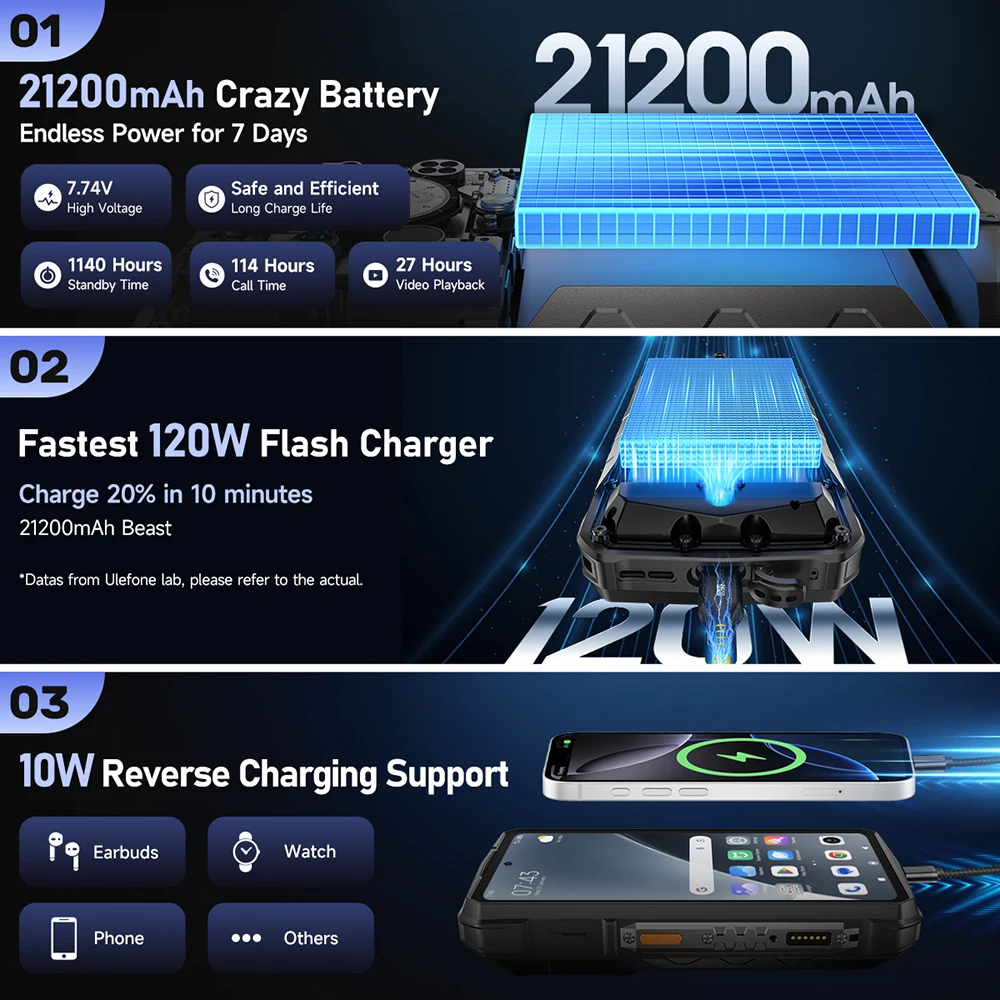

 21200mAh Crazy Battery

Endless Power for 7 Days

* This product uses dual-cell series connection design:

Typical capacity: 10600mAh (7.74V), equivalent to 21200 mAh (3.87V)

Typical energy:82.04 Wh

*A rated capacity of 10600mAh at 7.74V is equivalent to 21200mAh capacity. Power consumption data above are from Ulefone lab, which will be varied by actual usage.

 Fastest 120W Flash Charger    10W Reverse Charging Support

Charge with lightning speed, leaving battery worries behind. Always at the ready for whatever comes your way, equipped with the versatile PD (PPS) charging protocol, capable of rapidly juicing up a variety of devices, including iPhones.

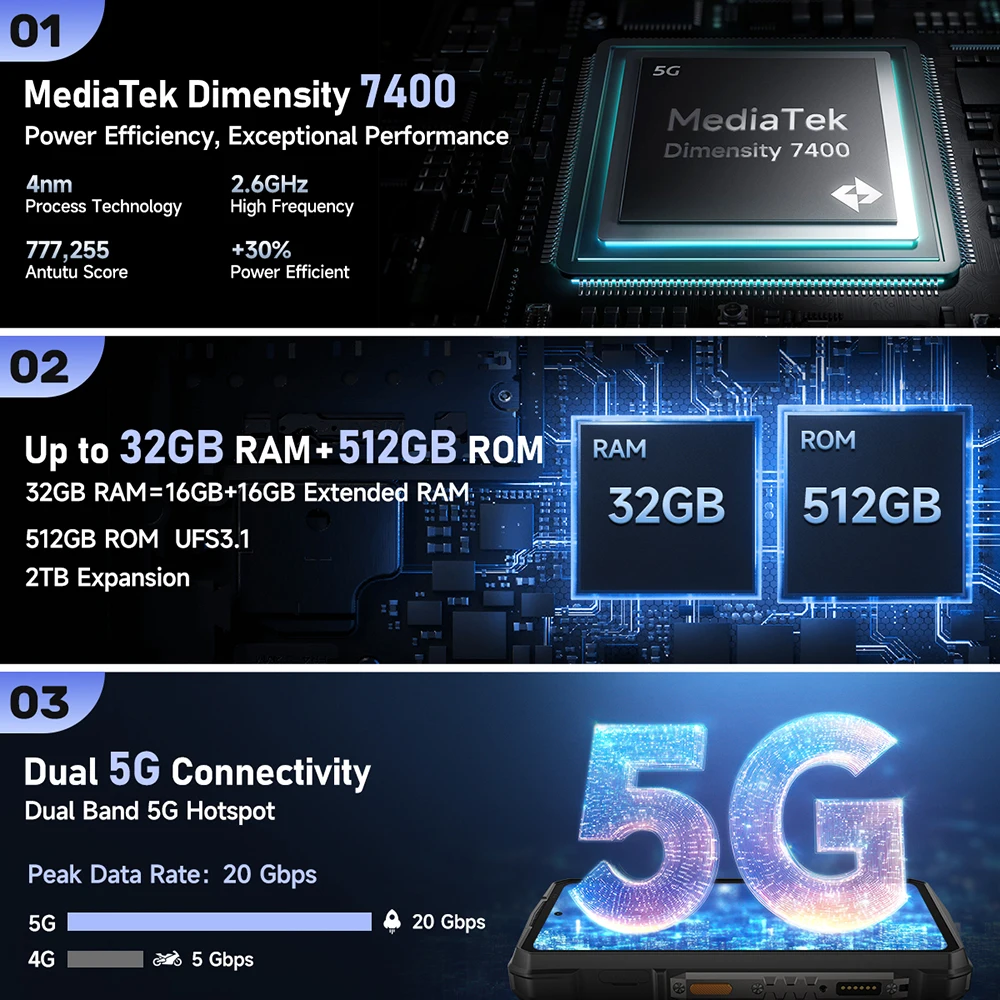

 MediaTek Dimensity 7400

Built on a 4nm process, effortlessly handles routine tasks and entertainment with enhanced efficiency.

A huge lift in both CPU and GPU performance, enjoy uninterrupted streaming and gaming with its octa-core CPU that reaches clock speeds of up to 2.6GHz.

 Up to 32GB RAM ,512GB ROM

32GB RAM =16GB +16GB

Navigate through your device with ease, thanks to up to 16 GB of physical memory, and boost your performance with an additional 16 GB for a faster and more agile user interface.

Substantial 512GB of onboard storage, perfect for storing a vast collection of HDR photos, videos, and a multitude of apps and documents. With 2TB expandable storage, you have the flexibility to grow your digital library without limits.

 Graphene Cooling

Stay Cool, Always

With over 15,314 mm² of graphene cooling technology integrated into a cutting-edge heat sink design, we've achieved a remarkable CPU temperature reduction to 4.6℃. The device stays ice-cold, even under the strain of the most demanding apps and games, sustaining peak efficiency and performance without compromise.

Enhanced AI Computing

With MediaTek NPU 655, AI task performance is greatly improved, leading to innovative experiences, sharper visuals, optimized power usage, and enhanced overall capabilities.

 Third-Party AI App Enabled

Harness the power of the AI engine for fast AI application experiences like Google Gemini, and converse to optimize your workflow.

*AI Removal and AI Background are on-device AI, enhanced by cloud AI online. Other features use cloud AI without data storage.

The AI Digital Human and AI Photography features offer a complimentary limit of 20 productions daily. Any production beyond this limit will incur additional charges.

 IP68/IP69K, MIL-STD-810H Fortified

Ambitious and Bold

Armor 29 Pro Thermal Version is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 1.8 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor 29 Pro Liquid damage not covered under warranty.

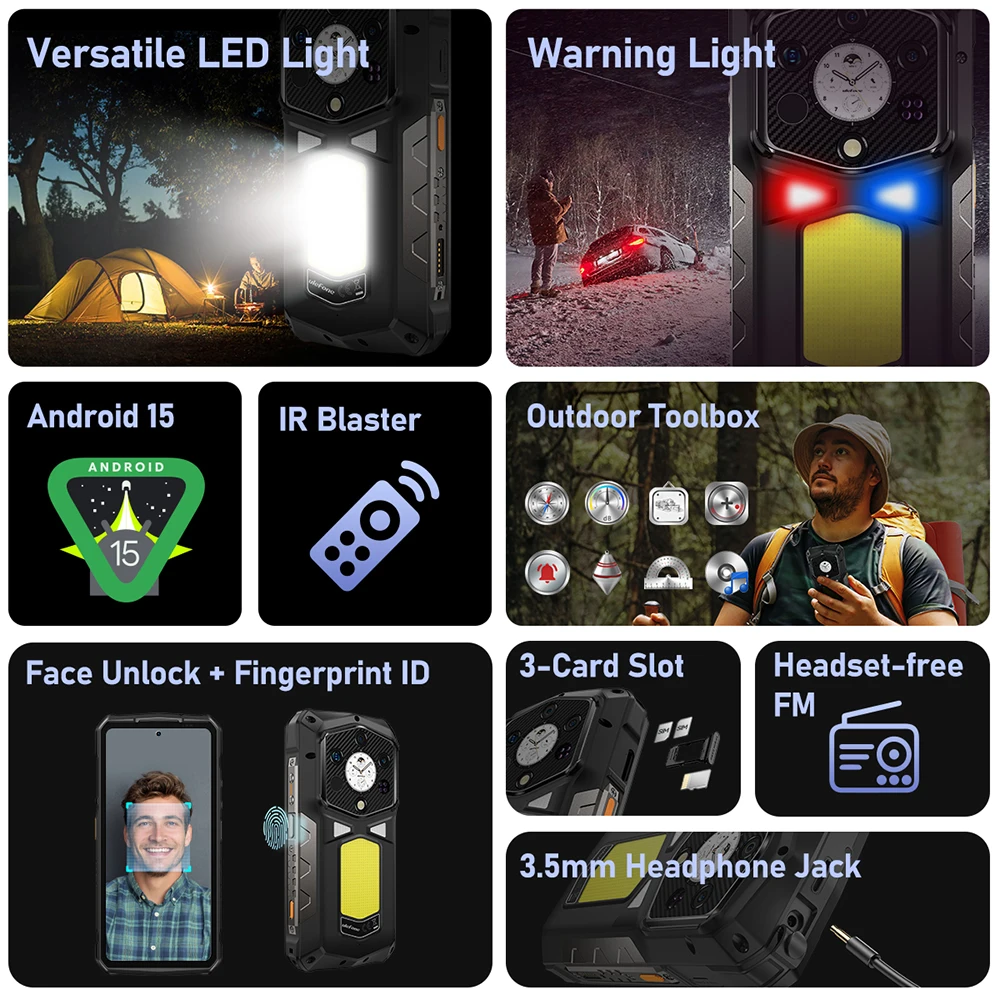

 Versatile LED Light

Armor 29 Pro Thermal features a high-intensity rear LED light capable of emitting up to 1000 lumens, sustained by a substantial 21200mAh battery for extended use, outperforming a standalone camping lantern. Equipped with 570 LEDs and a 5-watt output, this light projects a powerful beam efficiently. The design is water-resistant and rugged, ready for the demands of challenging environments and tough use.

 Warning Light

Use in Case of Emergency

Armor 29 Pro Thermal acts as an emergency beacon, featuring red, blue, and alternating red-blue warning lights for fire, medical, law enforcement, and other accidents, and works with selectable alarm sounds. It offers constant and flashing light modes for visibility and alert purposes.

 Dual 5G Connectivity

Dual Band 5G Hotspot

Embrace the future with 5G, offering rapid speeds and wide coverage. Enjoy a swift 5G hotspot that connects multiple devices reliably, anytime, anywhere.

 Newest Android 15

Smarter, Faster, Yours

Latest Android 15 enhances privacy with Private Space, lets you share screens selectively, and multitasks more efficiently with app pairs. The Home Controls screensaver turns your device into a smart home hub for convenient device management.

About Power charger

1 Please choose EU plug or US plug when placing an order. （ * No other plug specification are available）

2： If you have any questions about the plug of the charger, please contact customer services in advance. Please note that the plug of the charger is not within the scope of After-Sales services.

*Gifts/premiums are not covered by the warranty and will not be compensated if they are damaged

The specific gift is subject to the actual sales of the product.

Tip: To ensure your satisfaction, we recommend checking the product's thickness and weight details before placing your order to confirm they meet your needs

【Important Notice Before Purchase】

To ensure you order the correct product, please read the following instructions carefully:

1.   roduct Versions: This item is available in 【Thermal Imaging Version】 and 【Non-Thermal Imaging Version】.

2Your Responsibility: Please double-check the selected version according to your needs before placing your order.

3After-Sales Policy: Returns or exchanges due to incorrect version selection by the buyer will not be accepted.

Thank you for your understanding and support!

Ulefone Armor 29 Pro （T）Version Specifications
Physical Characteristics
Color	Marvel Black
Material	PC + Aluminium
USB	Type-C, USB 2.0
Headphone Jack	3.5mm Headphone Jack
Expansion Connector	uSmart Expansion Connector 2.0, suppors uSmart series accessories, allows simultaneous charging via the Type-C port while the uSmart Connector is in use.
Card Slots	3, 1x Nano-SIM + 1x Nano-SIM + 1x microSD
Keys	Right: Power button (Fingerprint)+Volume button+Camera Key, Left: Custom Key
Size & Weight
Product Size	177.35 x 85.6 x 33.8 mm / 6.98 x 3.37 x 1.33 inches
Product Weight	688g / 24.27 ounces
Package Size	108 x 198 x 97 mm / 4.25 x 7.8 x 3.82 inches
Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.
Ruggedness
Certification	IP68/IP69K/MIL-STD-810H
Splash, Water, and Dust Resistant	Maximum depth of 1.5 meters up to 30 minutes
Drop resistance	Up to 1.5m tall
Working Temperature	-20℃ – 55 ℃ (-4℉ – 131℉)
Main Display
Screen Size	6.67-inch
Screen Resolution	1080 x 2400 FHD+
Display Technology	AMOLED
AOD (always-on display) Mode	Support
Aspect Ratio	20:9
PPI	395
Brightness	2200nits (Peak Brightness), 900nits (HBN); 500nits (Typ)
Color Depth	10-bit
Refresh Rate	120Hz
Screen-to-Body Ratio	92%
Multi-touch	10
Sub Display
Screen Size	1.04-inch
Screen Resolution	340 x 340 HD+
Display Technology	AMOLED
AOD (always-on display) Mode	Support
Brightness	Max 600 nits
Refresh Rate	60Hz
Multi-touch	Single
UI/Features	Interface Display	Default features include clock, compass, music, camera, and calendar. Users can add other apps through the settings menu. Interface switching is supported by swiping left or right.
	Watch Face	Customization of watch face wallpapers is available through the settings menu or by double-tapping on the sub-screen watch face, then swiping left/right and long-pressing to select a watch face wallpaper. Different watch face designs display various information such as digital clock, date, battery level, step count, and air pressure.
	Music Playback	Supports selection of different music apps. Displays music playback status and song title. Users can control play/pause, and navigate to the previous/next track. The media app's poster can be synchronized and displayed on the sub-screen.
	Photo Capture	Provides quick access to photo capture, switching between front and rear cameras. Users can return to the camera, view photos, and check full-size images in the gallery app.
	Notifications	By swiping up on the sub-screen, users can quickly view notifications and messages.
	Status	By swiping down on the sub-screen, users can quickly check the battery status.
	Personal Signature	Displays a personal signature upon screen-on, which can be customized in the sub-screen settings menu.
Processor
CPU Model	MediaTek Dimensity 7400
Main frequency	2.6GHz
Production Process	4nm
CPU Core	8, 4x Arm Cortex-A78 up to 2.6GHz, 4x Arm Cortex-A55 up to 2.0GHz
GPU	Mali-G615 MC2, 1400MHz
AI Processing Unit	MediaTek NPU 655
RAM & Storage
RAM	32GB=16GB LPDDR5 + 16GB Dynamic RAM (The Dynamic RAM can be extended in Settings if needed. )
Storage	512GB UFS3.1
Max. Expansion Supported	2TB
Rear Camera
Rear Camera Numbers	3
Main Rear Camera	Pixel: 50MP
	Details: Samsung GN1 CMOS sensor, 1.2μm, 7 piece lens, FOV 85°, ƒ/1.95 large aperture
Night Vision Camera	Pixel: 64MP
	Details: OV64B CMOS sensor, FOV 79.4°, ƒ/1.79 large aperture
Ultra-wide Lens	Pixel: 50MP
	Details: Samsung JN1 CMOS sensor, FOV 117.3°, ƒ/2.2 large aperture
Flash	1
Video Recording Resolution	4K(30fps), FHD(60fps/30fps), HD(60fps/30fps), VGA(60fps/30fps)
Special Features	Normal mode, Night vision mode,Beauty mode, Wide angle mode, 50MP mode, Night mode, Gif, Portrait, Pro mode, Panorama, Slow motion,Mono, QR code
Front Camera
Pixel	50MP
Details	Details: Samsung JN1 CMOS sensor, 0.64μm, 5 piece lens, FOV 80.4°, ƒ/2.45 large aperture
Video Recording Resolution	FHD(30fps), HD(30fps), VGA(30fps), CIF(30fps)
Special Features	Normal mode, Beauty mode , 50MP mode, Gif, Portrait, Mono
Battery & Charging
Capacity	21200mAh (Equivalent to 10600mAh, 7.74V)
Watt Hours Per Battery	82.044 Wh
Battery Type	Lithium-ion polymer battery
Charging Details	120W, 20V/6A
Reverse Charge	Support, 10W
Standby Time	1140 Hours
Talk Time	114 Hours
Network & Connectivity
Card Type	Nano+Nano+microSD
Cellular	5G/4G/3G/2G
	*Not compatible with AT&T, Cricket, Sprint,Verizon, Boost Mobile, Koodo, Telus Wireless, Fido*Some network carriers have not been displayed because their 5G networks are not yet in mass commercial use. If you have participated in this carrier's testing program, please check with the carrier about the 5G frequencies they use, so that you can check whether Armor 29 Pro 5G supports their network.
Band Details	5G: Sub6: N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79
	4G: FDD-LTE: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/ 26/28A/28B/32/66/71 TDD-LTE: B34/38/39/40/41
	3G: WCDMA: B1/2/4/5/6/8/19
	2G: GSM: B2/3/5/8 CDMA: BC0/BC1/BC10
Standby Mode	Dual sim dual standby
VoNR	Support
VoLTE	Support
WiFi	WiFi 6E (2.4GHz/5GHz/6GHz), 802.11a/b/g/n/ac/ax
Bluetooth Version	BT5.4
Navigation	GPS/GLONASS/Beidou/Galileo/QZSS/NavlC GPS
Audio
Speaker Numbers	1
Speaker Model	1326 SPK BOX
Speaker Power	Max 2W
Smart PA	AW88394
Versatile LED Light
LED Beads	570 Pieces
Brightness	Max 1000 lumens
Light Power	Max 5W
Shortcut Key	Support, Custom Key
APP	Camping Light
Modes	Lighting, adjustable brightness settings; duration settings of 5-30mins.
	Sharp Light, duration settings of 5-30mins.
	SOS
	AlwaysLighting
Safety Protection	Support
Warning Light
APP	RedBluePoliceLight
LED Beads	34 Pieces
Simulated Light Effect	Red Light, Blue Light, Red-Blue Light
Simulated Warning Sound	Fire, Ambulance, Police Car, and other first responding warning sound
Lighting Modes	2, Constant or Blink
Security
Fingerprint ID	Support
Face Unlock	Support
System & Features
Android Version	Android 15
Pre-installed APP	Calculator, Google Calendar, Campling light, Camera, Children Space, Chrome, Clock, Contacts, Google Drive, Easy Launcher, Files by Google, Find Device, FM Radio, Game Mode, Gmail, Google, Google TV, Keep Notes, Google Maps, Google Meet, Google Messages, Netflix, Phone, Photos, Google Play Store, QRCode Scan, RedBlueAlarmLamp, Remote Control, Safety, Service Center, Settings, SIM ToolKit, Sound Recorder, System Manager, ThermoVue T2, Toolbag, Ulefone AI Toolkit, YouTube, YT Music
Language	Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese
Blinking Notification Light	Support, red/green/blue light
Battery Status Light	Support
Audio Format Supported	MID/FLAC/MKA/MP3/M4A/AAC/AMR/OGG/MP2
Video Format Supported	MOV/MKV/3GP/MP4
Image Format Supported	GIF/JPEG/PNG/BMP
Text Format Supported	TXT/HTML
FM Radio	Support,headset-free FM radio
Cell Broadcast	Support
Sensor	Proximity Sensor, Gravity sensor, Light Sensor, Acceleration Sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Air pressure sensor, Infrared sensor
Special Features
Underwater Camera	Support
Digital Toolbox	Height Meter, Compass, Gradienter, Flashlight, Hanging Painting, Magnifier, Alarm bell, Plumb bob, Protractor, Noise Test, Pedometer, Barometer, Funny Sound, Mirror
OTG Function	Support
NFC	Support
IR Blaster	Support
Others
Packing List	1 x Phone 1 x AC Power Charger, 120W 1 x Type-C to Type-C Data Cable (100cm) 1 x Protective Film (Pre-installed) 1 x SIM Needle 1 x Lanyard 1 x Multi-language User Manual 1 x Warranty Card 1 x Charging Instruction Card 1 x Safety Prompt Statement 1 x User Tribute Card
Product Certification	CE, FCC, IP68, IP69K, MIL-STD-810H, WEEE, ROHS.TAC, UN38.3,MSDS, IEC62133

1.1: For non-human damage, we support 1 year warranty counted from the date of purchase. not including accessories and batteries.(Buyer is responsible for the returning shipping cost.)

1.2 : For any exchange or refund,we need the product must be in its original condition,including the box,and all accessories.Buyer is responsible for the returning shipping cost.

After receiving the goods, please inspect the package immediately and record an unboxing video. If there are any issues, please contact us promptly

2.1:The difference between (European union)(Other Area)(Russian Area)

There is no difference between software and hardware, just to comply with relevant laws and regulations. Users are expected to select the corresponding version based on their region when purchasing.

When the corresponding version is out of stock. we will replace another version for you,does not affect the use . Please don't worry

2.2:The stated ROM amount shows the maximum available ROM with nothing installed. However, the Android OS will occupy some of this ROM. The available ROM on the device will be less than the publicity.

2.3: The standard testing information of the phone is referred to the information from AnTuTu Benchmark App, and we don't bear the testing information from CPU-Z as it is normally suitable for computer. Also, we don't bear the test information from other apps or through other devices. Since we can't make sure their accuracy and profession.

3.1:We ship to most of countries.except AFO&FPO.

3.2: Items are shipped from China using Ali Express Standard Shipping,reach most of countries within 10 to 20 business Delivery time depends on destination and other factors, it may takes up to 30-45 business days .

4.1: We maintain high standards of excellence and strive for 100% customer satisfaction!

4.2:  Feedback is very important, we hope you can contact us immediately before you give us neutral or negative feedback, so that we can satisfactorily address your concerns. It is impossible to address issues if we do not know about them .
