Multi-Camera 4K/HD Broadcasting Camera Fiber Equipment with CCU for Live Events, Concerts, Sports and Television Broadcast
-
Shipping Information
Free shipping
-
Easy Returns
Return within 30 days of purchase
SPECIFICATIONS
Brand Name: NONE,Ho- Link
Certification: CE RoHS FCC
Fiber connector: ODC
Fiber type: 9/125um single-mode
High-concerned chemical: None
Item Type: cable
Model Number: EFP-HFV93C
Optical module parameter: Single fiber single mode 10km
Origin: Mainland China
Warranty Time: 3 years
Wavelength: 1270/1330/1470/1490nm
Multi-Camera 4k/ HD Broadcasting Camera Fiber Setup with CCU for Live Events, Concerts, Sports Broadcast, Television Broadcast
Contact Lari directly with any requirements — there may be a surprise!
WhatsApp/Wechat: +86 158 7552 0146
Email: sales01@holinktech.com
Overview
Combined with the fiber interface of fiber optical cable currently used by users in the market, the fiber interface of this
equipment adopts ODC interface, which is convenient for user resources to be reused.
According to the actual application needs of most users in the market, the transmitter of the equipment is designed as a desktop type, with a 3/8 hot shoe, support Magic arm hanging board, which can supply power to the fiber optic converter and the camera or other photographic equipment through the V-port mobile power supply, which is convenient for use in outdoor or inconvenient environments for operation.
1 channel reverse PGM
Technical Characteristics
Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD); compatible with
DVB-ASI and AES10 (MADI).
Clock recovery function( the clock restorer weakens high-frequency jitter and uses pure low-jitter clocks to
regenerate data completely).
The clock restorer is locked to 11.88Gb ps, 5.94Gb ps, 2.97Gb ps, 1.4 85Gb ps or 1.001 fractional sub-rate and
270Mbps SMPTE rate.
The signal input has an automatic cable equalization (EQ) function, and the output has a drive (CD) function.
Support plug-in SFP optic modules, which can be replaced according to the actual needs of the site and different
distances or interfaces corresponding to optic modules.
Support single mode single fiber/dual-fiber transmission distance 10KM (default).
Support status light display.
Supports a wide voltage 9-18V power supply, power plug with a lock to prevent falling off during operation.
Plug and play, no debugging.
Fiber type: 9/125um single mode
Rate: 12Gbps
Transmitter power: 0~-3dB
Receiver sensitivity: -12dB

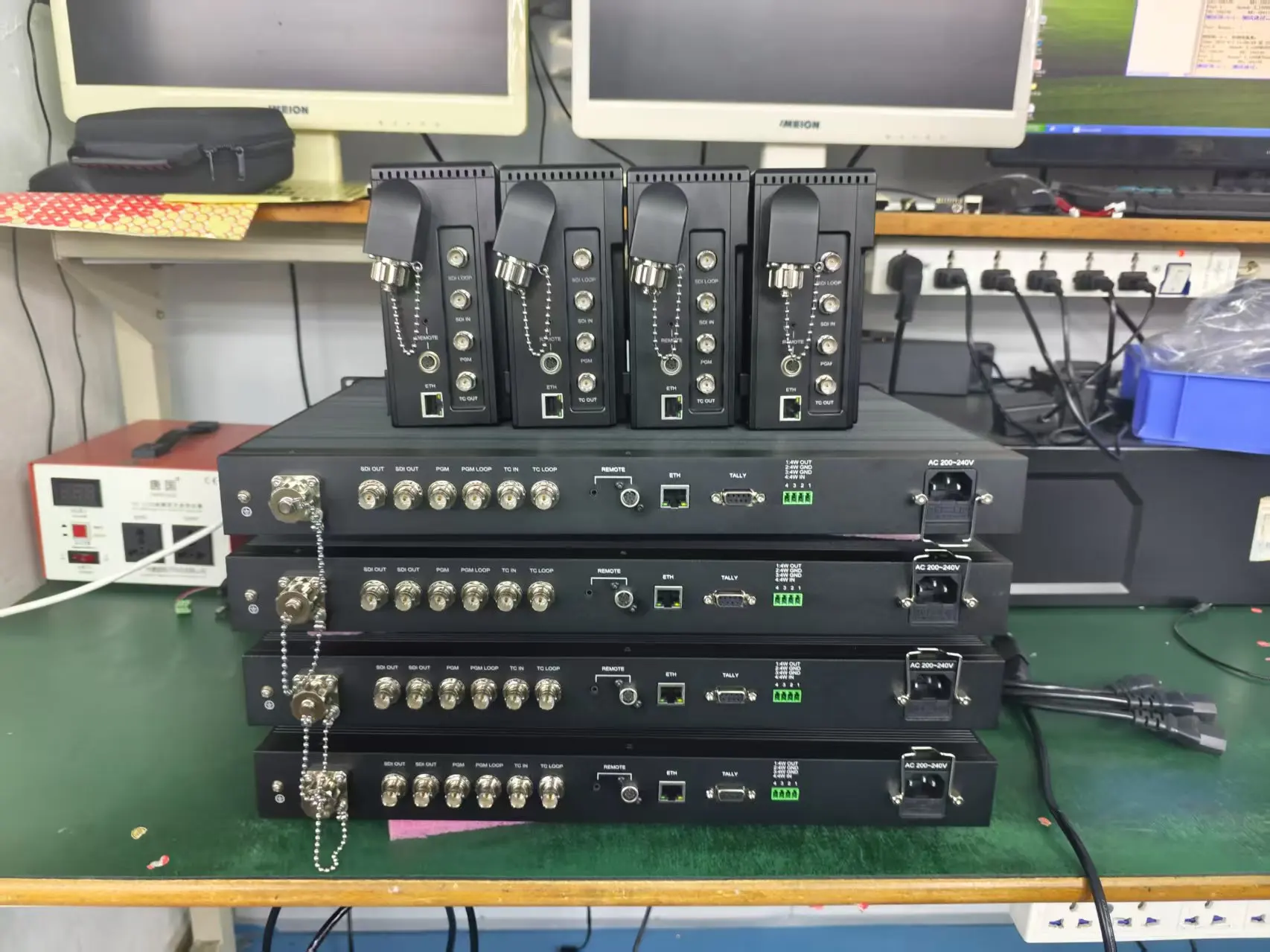

Pictures
Application
1. SMPTE compatible with serial digital interface
2. UHDTV/4K/8K/HDTV/SDTV video
3. IP media gateway
4. Digital video processing and editing
Connection Diagram
Reminder
1. It is recommended to use the short optical fiber link for the first time to ensure that all the functions of the equipment are normal, and then do long-distance transmission
2. The signal of the fiber optic converter can be output to the power amplifier, but the audio source of the power amplifier can not output the audio source signal to the fiber optic converter, otherwise the equipment will be burned
Troubleshooting of indicator
1: Power indicator is abnormal (POWER)
Answer: Check whether the power adapter meets the equipment requirements or the power adapter fails
Whether the socket is not tight or loose
2: Fiber indicator is abnormal (FIBER)
Answer: Check whether the optical fiber interface is loose and not plugged in
Check whether the optical fiber is too attenuated
3: Video indicator is abnormal (VIDEO)
Answer: Check the signal source
Replace the video cable
4: Data indicator is abnormal (DATA)
Answer: Check the COM port, whether the baud rate is consistent
Check whether the serial port cable is connected backward
Attention
Lightning protection, static electricity and grounding:
It is recommended that when install the device, consideration should be given to the impact of grounding by lightning, and take prevention measures. Strong static electricity will damage the optical device and data chip in the equipment. It is recommended that when plug/unplug the data port of the optical converter, please disconnect the power supply of the optical converter first.
Fiber and optical components:
Be careful when plugging the optical fiber as optical components of the optical converter is very fragile, and it should avoid causingdamage to the optical components. It should be noted that the light source produced by the optical components of the optical converter will be harmful to eyes, so do not have direct eye contactwith the optical components of optical converter. If you need to detect the optical power of the optical converter, please use the optical power meter.
Equipment and installation procedures:
1.Optical fiber installation: please carefully insert the optical fiber into the optical fiber interface of the optical terminal after confirming that the optical fiber link meets the installation requirements.
2.Equipment installation: The equipment can be distinguished between transmitter and receiver, and it is stated clearly on the label and printed on the chassis of the equipment.
Package Reference
