SPECIFICATIONS

Aperture: F1.6

App Name: CAMHI PRO

Audio: Two-way Audio

Brand Name: G.Craftsman

Customized support: Online Technical Support,Customized Logo,Software Reengineering,OEM, ODM

Data Storage Options: Cloud,Micro SD card,Memory Card,Sd Card

Function: Two-Way Audio,Reset,Built-In Mic,Night Vision,Waterproof / Weatherproof,Wide Angle,Built-In Siren,Dual Light,Dual Lens,180 Degree View Angle

IP Rating: IP66

Lens: 4mm+4mm,4mm +4mm Dual

Material: Plastic,Plastic Housing

Model Number: GW-F4FD-M2H-US 180 degree camera

Night vision: IR Distance 25M

Pixels: 4 MP

Place of Origin: Guangdong, China

Power Supply: DC12V

Resolution: 3840*1080

SD Card Slot: Max 128GB

Sensor: CMOS,HD CMOS

Special Features: Night Vision,Motion Detection,Built-In Siren,Two-Way Audio,Humanoid Detection

Style: Panoramic Camera

Video Compression Format: H.265

Viewing Angle: 170 degree

Warranty: 1 Year

Waterproof: IP66

Product Description

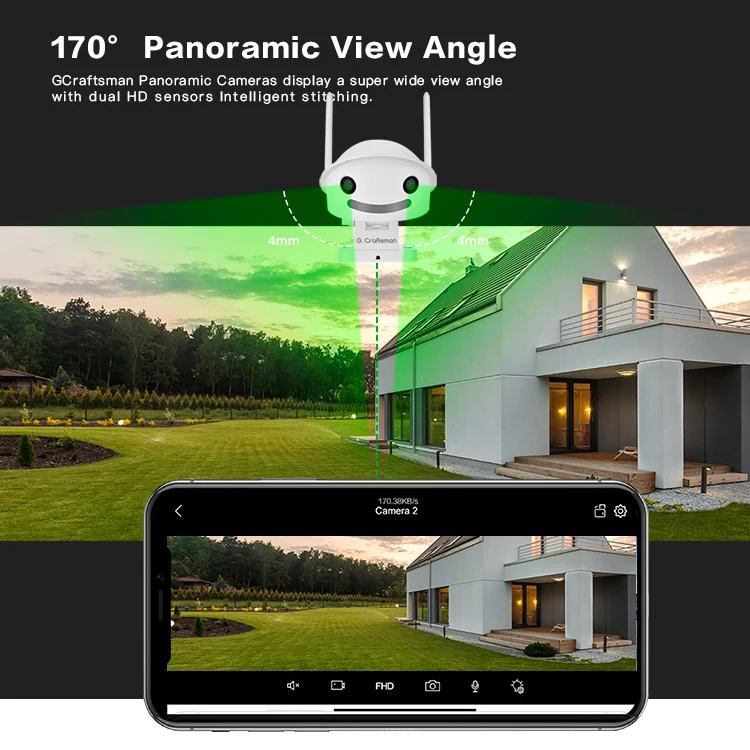

170° Panoramic View

GCraftsman Panoramic Cameras display a super wide view angle with dual HD sensors Intelligent stitching. The unique image synthesis technology is achieving a perfect 170° Panoramic View without overlapped image.

Application Scenarios

Wide-angle surveillance cameras with 170~180° field of view demonstrate significant advantages in the following scenarios such as Industrial parks,Airports,Transportation hubs,Large warehouses,Parking lots,Residential courtyards,Parks,Livestock farms,Sports venues etc.

Human Detection

Gcraftsman AI Camera supports human shape detection, it greatly helps users demarcate accurate monitoring area to enhances monitoring efficiency and protect the safety of private property very well.

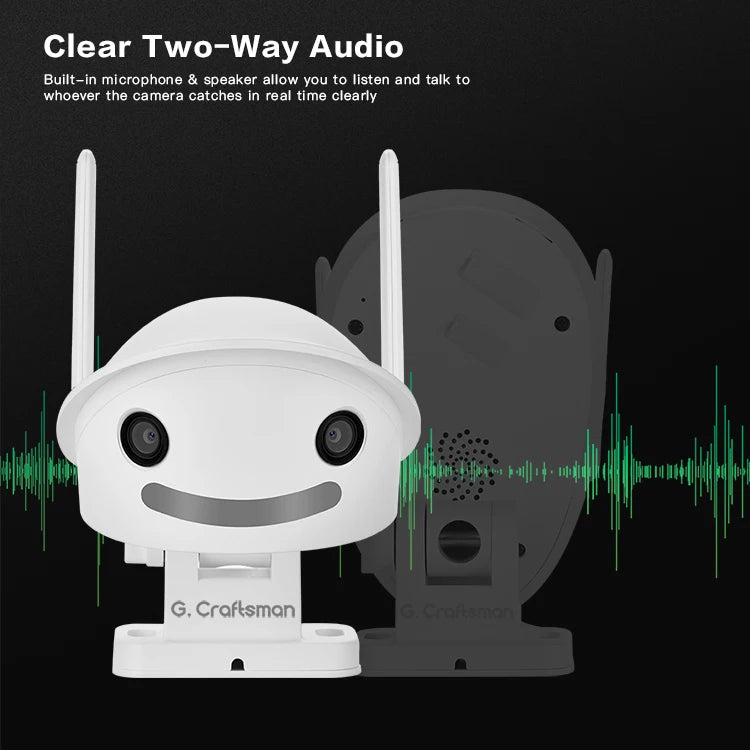

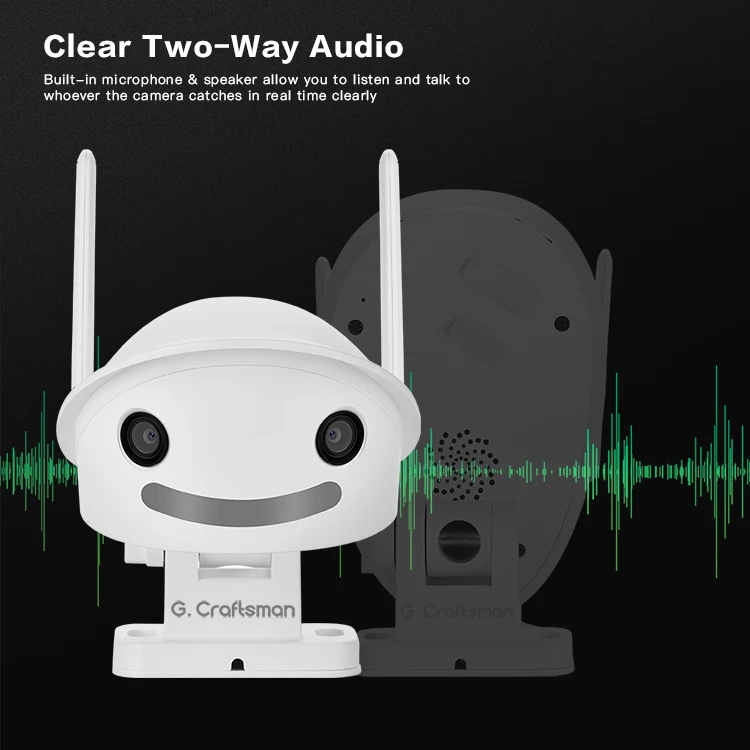

Clear Two-Way Audio

Built-in microphone & speaker allow you to listen and talk to whoever the camera catches in real time clearly, G.Craftsman advanced echo canceller technology is able to transmit HQ sounds without noise.

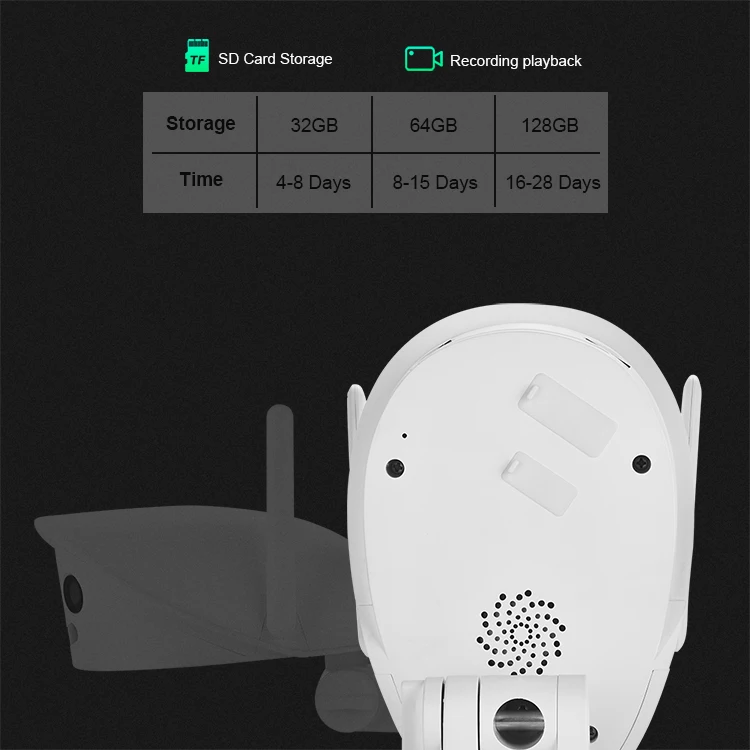

Multiple Recording Options

Except for APP Cloud Storage and NVR HDD recording, The WIFI PTZ Cameras also support Max 128GB Micro SD Card local storage and recording playback. Meanwhile, the leading AI H.265 technology is able to save more memory space.

Revolutionary Dual Lights Performance

The IR LEDs technology has been upgraded to provide videos with a viewing range of 20m~30m. 6pcs Dual light source display a sharp B&W image at night, also display a colorful night vision image once the alarm is triggered.

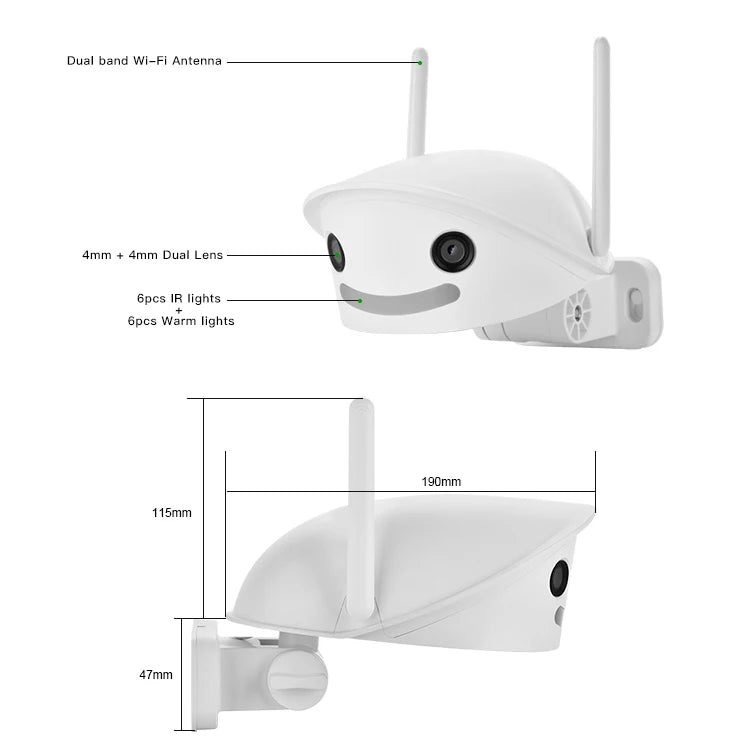

Better in Details

WIFI & Wired Camera

GCraftsman design and build-in the Onvif Protocol in the WIFI camera, so it not only supports the general WIFI connection to Router, but also supports Onvif wired cable connection to NVR or Network Switch.

Packing & Delivery

Quality camera and all of the accessories are well-packed with protective mat in the camera box. G.Craftsman uses hard & thick cartons with cornor pads to protect the cameras, especially the vibration test before shipment can ensure the goods arrive there in good condition.

Product Parameters

System
ISP	T31L
Sensor	2 * 1/3"GC2083
Compression	AI H.265/ H.265
High Definition	2MP+2MP
Frame rate	12fps
Resolution	3840*1080
Lens	4mm +4mm
View Angle	170 Degree Panorama
Night vision	6pcs Dual Light Source; IR Range: 30M
Audio
Coding standard	G.711
Two-way Audio	Support
Storage
Cloud	Support Cloud storgage
TF Card	TF card max 128GB
Network
APP Name	CAMHI PRO
Dual WiFi	2.4G & 5.8G; IEEE 802.11 b/g/n
Wired Connection	RJ45 100mbps Network Port
Network Protocol	Support TCP/IP,RTSP,ONVIF
Download	iOS in App Store, Android in Google Play
WIFI connection	Scan QR code,Network Cable connection,AP Hotspot connection
Message	APP Push
Others
Language	English / Chinese
Apex voltage	DC 12V 1A
Weatherproof	IP66
Suitable place	Home,shop,School,factory
Working Temperature	-20℃－＋55℃
Working humidity	10%－90%
Inner Package	26*14*13CM/ 0.7KG
