SPECIFICATIONS

Application: Desktop

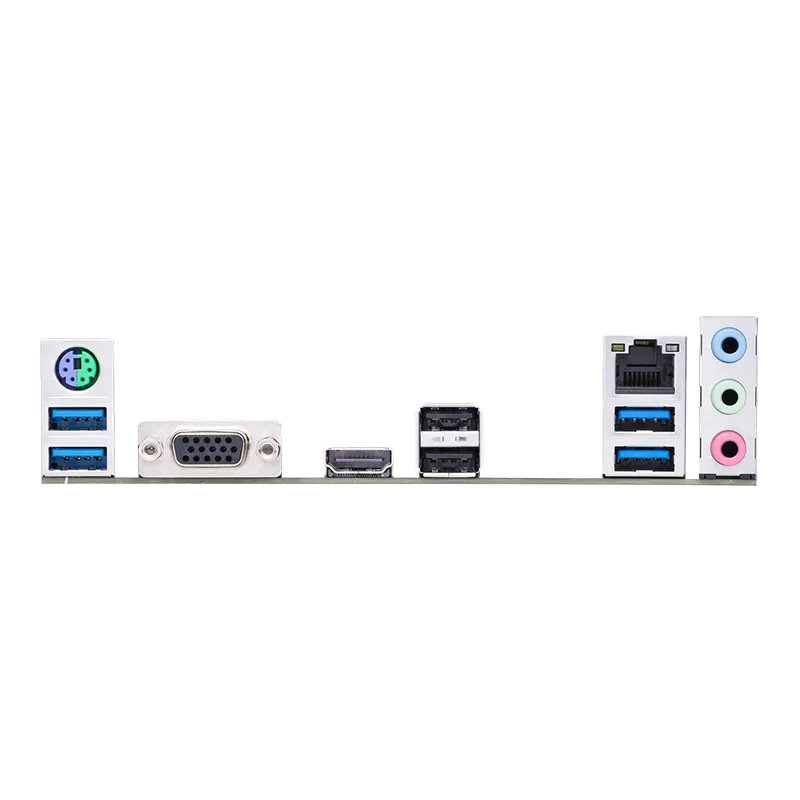

Back I/O Ports: 1x RJ45,VGA (D-Sub),COM,4x USB 3.2/3.1 Gen 1,2x USB 3.2/3.1 Gen 2,4 x USB 2.0,PS/2,HDMI 1.4

Battery Included: No

Brand Name: Asus

Chipset: AMD A520

Chipset Manufacturer: AMD

High-concerned chemical: None

Maximum Ram Capacity: 64 GB

Number of PCI: 1

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 3.0

Package: No

Processor compatibility: AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 3000 Series-R9,AMD Ryzen 5000 Series-R9,AMD Ryzen 4000 Series-R7,AMD Ryzen 3000 Series-R7,AMD Ryzen 5000 Series-R7,AMD Ryzen 3000 Series-R3,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5,AMD Ryzen 5000 Series-R3,AMD Ryzen 4000 Series-R9

RAID Supported: No

Socket Type: AM4

Special Features: NONE

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Usage Scenario: Gaming,Audio & Video,Office

With CPU: No

Detailed parameters

Motherboard chip

Processor specifications

Memory specifications Storage expansion

I/O interface Panel shape

Software Management

Other parameters

Motherboard Accessories

Warranty Information

Motherboard Chip

Integrated Chips Audio Card / Network Card

Main Chipset AMD A520

Chipset Description Uses AMD A520 Chipset

Display Chip CPU Built-in Display Chip (Requires CPU Support)

Audio Chip Integrated Realtek ALC887 7.1 Channel Sound Chip

Network Card Chip Board-Built Realtek RTL8111H Gigabit Network Card

Processor Specifications

CPU Type Third Generation AMD Ryzen Processor

CPU Socket Socket AM4

Memory Specifications

Memory Type 2×DDR4 DIMM

Maximum Memory Capacity 64GB

Memory Description DDR4 4600 (Overclocked)/4400 (Overclocked)/4000 (Overclocked)/3866 (Overclocked)/3733 (Overclocked)/3600 (Overclocked)/3466 (Overclocked)/3333 (Overclocked)/3200/3000/2800/2666/2400/2133 MHz Memory Storage expansion

PCI-E standard PCI-E 3.0

PCI-E X16 slot 1 slot

PCI-E X1 slot 2 slots

Storage interface 1×M.2 interface, 4×SATA III interfaces

I/O interface

USB interface Backside USB interfaces (6 in total)

4×USB3.2 Gen1 interfaces (4×Type-A), 2×USB2.0 interfaces (2×Type-A)

Front USB interfaces (6 in total)

2×USB3.2 Gen1 interfaces (2×Type-A), 4×USB2.0 interfaces (4×Type-A)

Video interface 1×VGA interface, 1×HDMI interface

Power interface One 8-pin, one 24-pin power interface

Other interfaces 1×COM interface, 1×PS/2 keyboard/mouse universal interface, 1×RJ45 network interface, 3×audio interfaces, 1×TPM interface Panel shape

Motherboard type: Micro ATX type

Overall dimensions: 22.6 × 22.1 cm Software Management

BIOS performance: 256 Mb Flash ROM, UEFI AMI BIOS Other parameters

Overclocking function Supported

RAID function RAID 0, 1, 10 are supported

Operating system Windows 10 64-bit
